Description

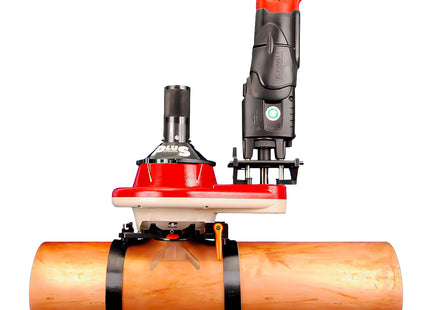

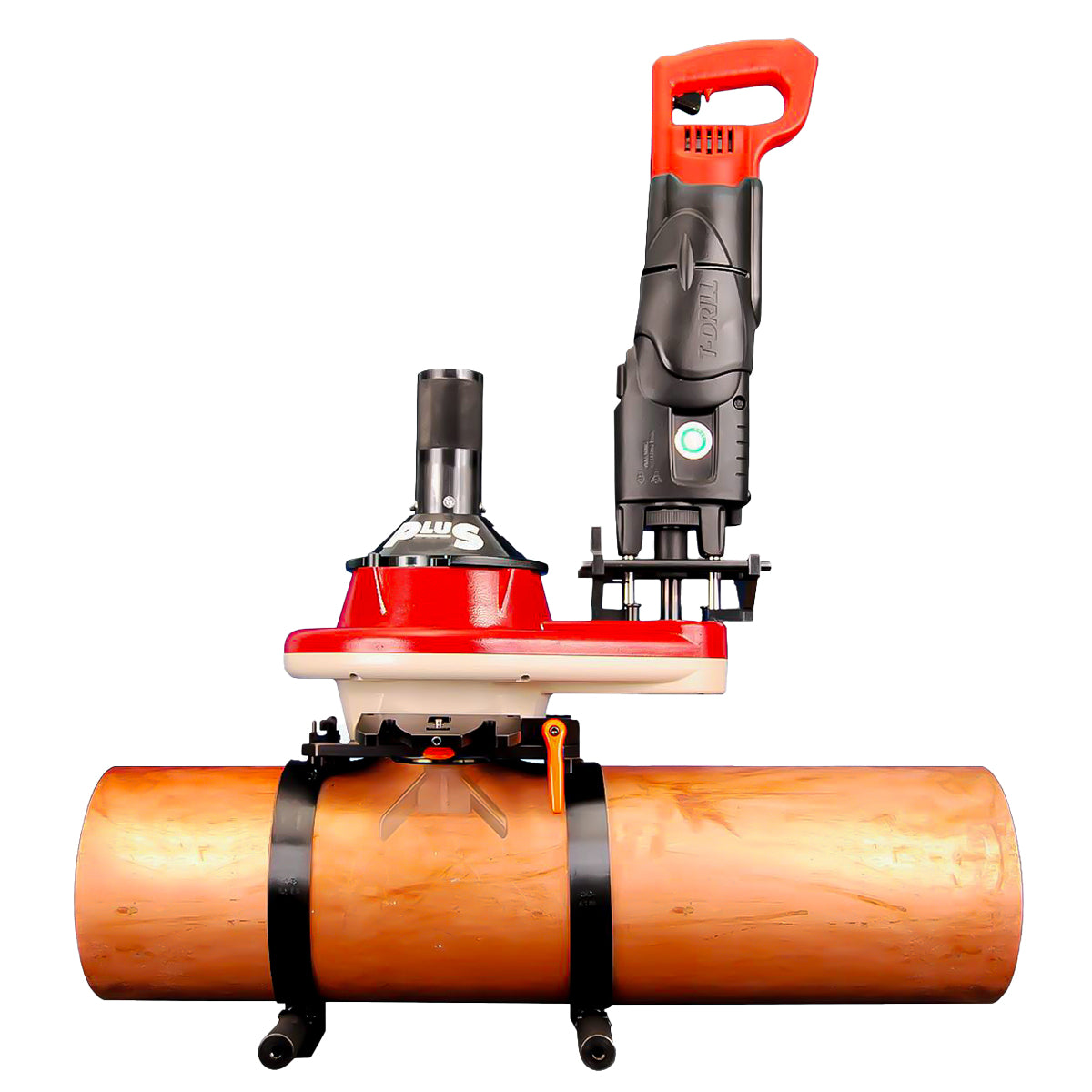

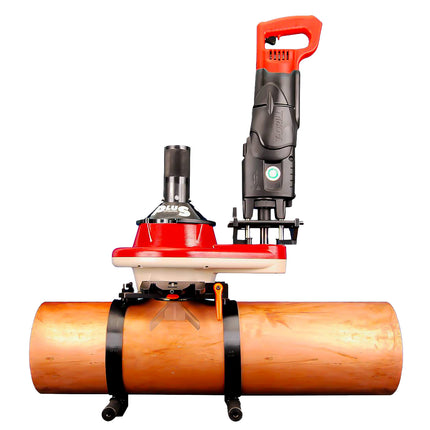

PLUS 115 CU Portable Collaring System for Copper tubes

The PLUS 115 Copper Collaring System is an effortless, capacity expanding attachment for the heavy duty T-65 Portable Collaring Machine. It forms 54–115 mm (NS 2″–4″) outlets on copper tubes up to 206 mm (NS 8″) in just a few minutes. By eliminating two brazed joints, the system minimizes costs and increases profit while offering improved quality, comparable to mechanically formed tee joints.

The ergonomically designed system minimizes the operator workload and is effortless to use. The powerful PLUS 115 SS is an ideal solution to be used both on the jobsite and in the fabrication shop.

Specifications

• Collar sizes: 54–115 mm / NS 2” – 4”
• Run tube sizes: 54–206 mm / NS 2” – 8” (Please contact us for bigger sizes)
• Pipe material: Copper
