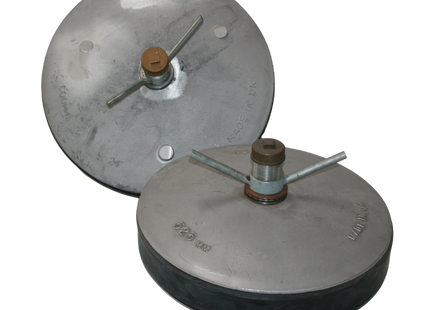

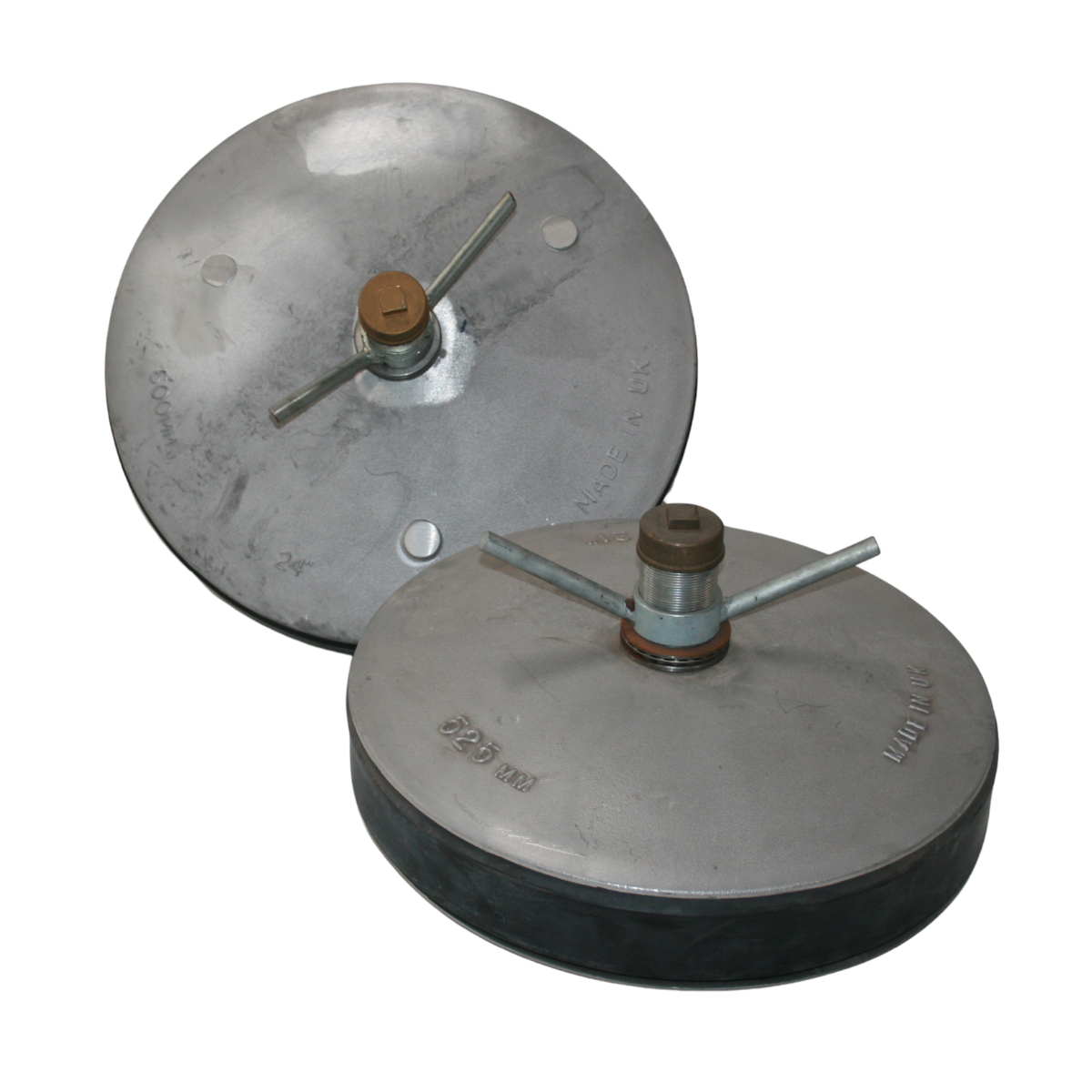

Plumboss Aluminium Test Plug 24 in (600mm)
Heavy duty aluminium plug for large diameter pipe testing
The Plumboss Aluminium Test Plug is designed for sealing extra large diameter pipelines during pressure testing, maintenance and commissioning. Built for reliability in demanding environments, it delivers a secure mechanical seal for drainage, sewer and civil applications.
Manufactured from durable aluminium, this plug expands to create a tight seal inside the pipe. Aluminium test plugs are ideal for leak testing, isolation, sealing, stopping and purging pipework where a strong, corrosion resistant solution is required.
For sealing when testing pipe lines from 1 1/2in up to 48in
| PRODUCT CODE | DESCRIPTION | MIN/MAX (mm) | BSP OUTLET SIZE |
|---|---|---|---|
| 1½AL | TEST PLUG ALUMINIUM 1 ½in (38mm) | 36 - 48 | ½in |
| 2AL | TEST PLUG ALUMINIUM 2in (50mm) | 49 - 60 | ½in |
| 2½AL | TEST PLUG ALUMINIUM 2 ½in (65mm) | 61 - 75 | ½in |
| 3AL | TEST PLUG ALUMINIUM 3in (75mm) | 73 - 85 | ½in |
| 4AL | TEST PLUG ALUMINIUM 4in (100mm) | 94 - 110 | ½in |
| 6AL | TEST PLUG ALUMINIUM 6in (150mm) | 146 - 163 | ½in |
| 21AL | TEST PLUG ALUMINIUM 21in (525mm) | 520 - 555 | 2in |
| 24AL | TEST PLUG ALUMINIUM 24in (600mm) | 590 - 630 | 2in |
|
Operating Pressure Sizes
|
|
|
This is a guide to the maximum back pressure for the different types and sizes of test plugs.
These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.
|
|
|
½” (12.5mm) to (30mm) |
30 psi |
|
1½” (40mm) to (300mm) |
7 psi |
|
13” (325mm) to (1200mm) |
5 psi |
|
Over 40” (1200mm) |
3 psi |
Specifications
- Pipe Size Range: 590–630 mm
- Outlet Size: 2 inch BSP
- Construction: Aluminium body with rubber sealing ring
