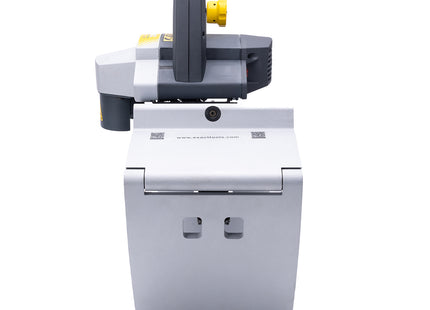

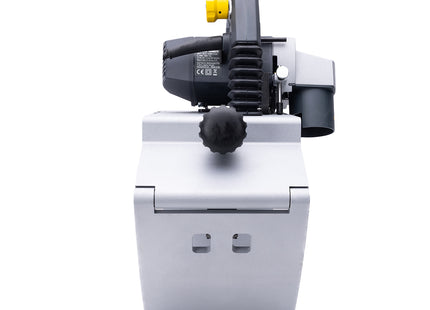

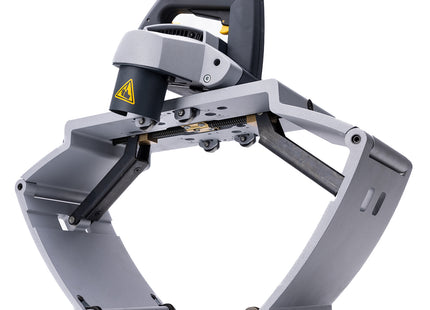

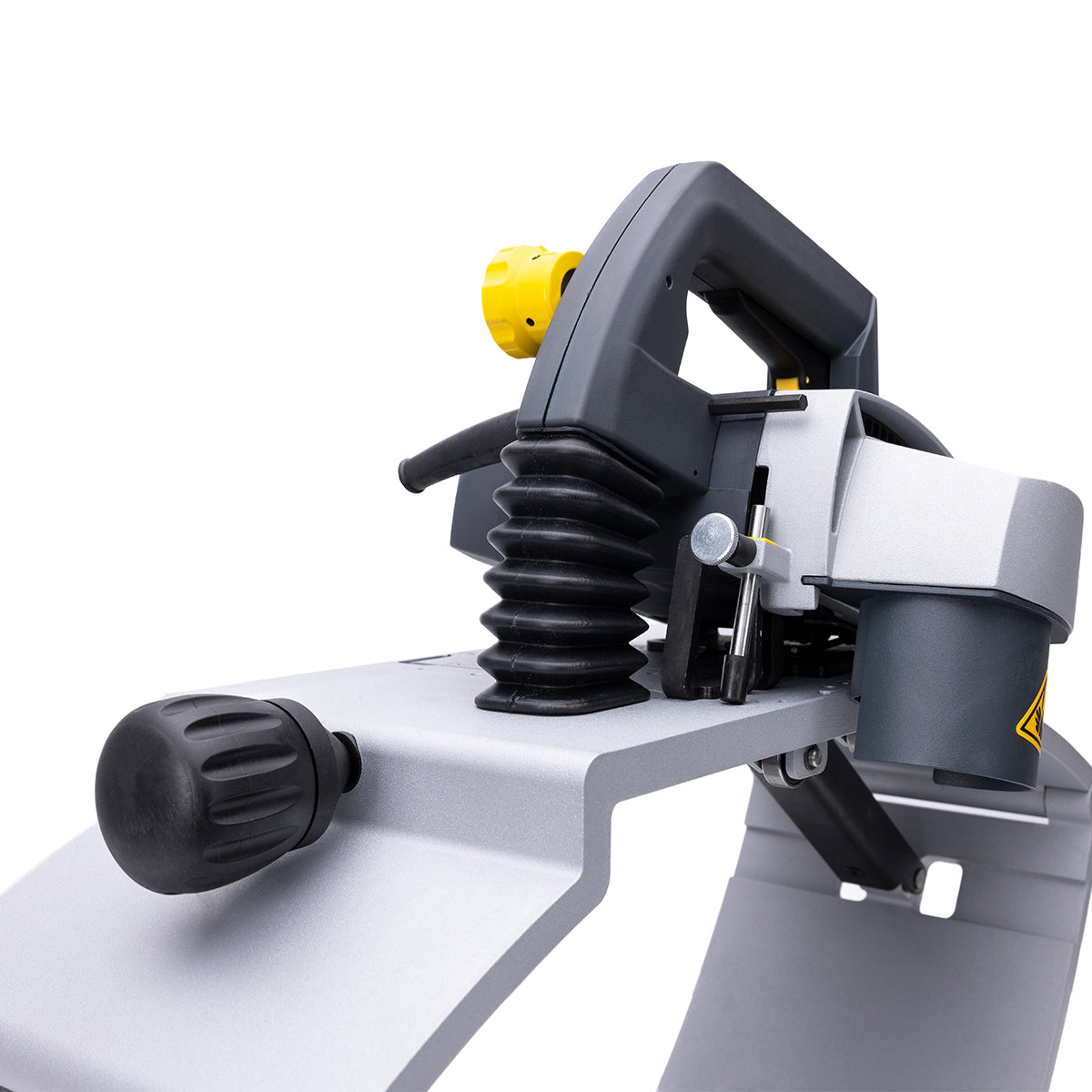

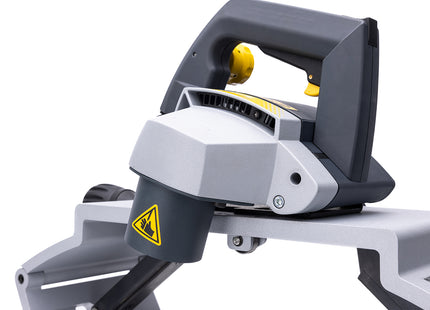

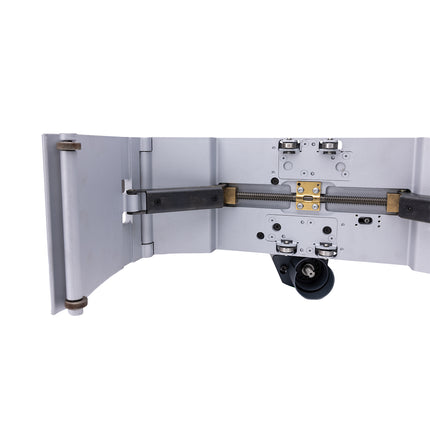

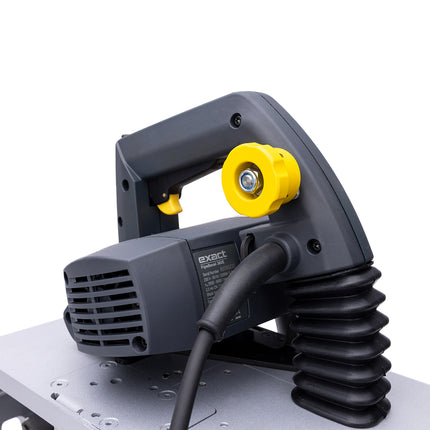

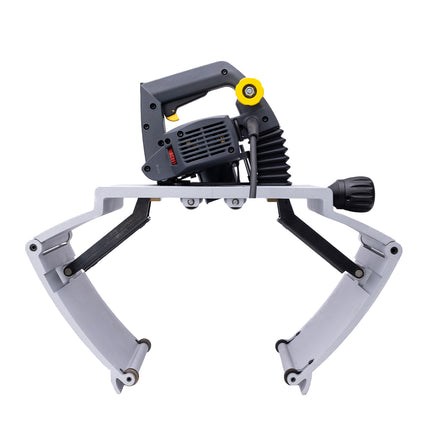

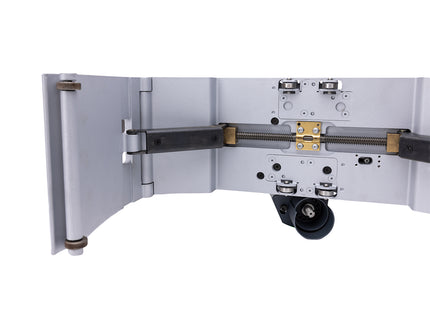

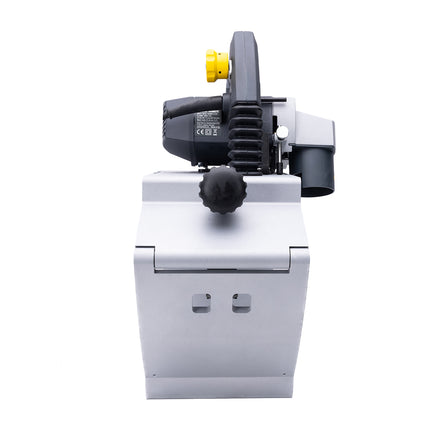

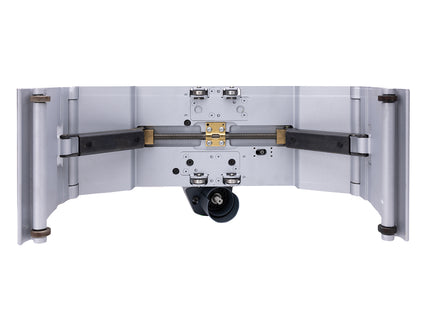

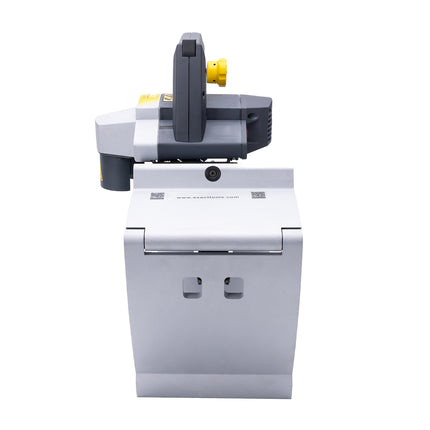

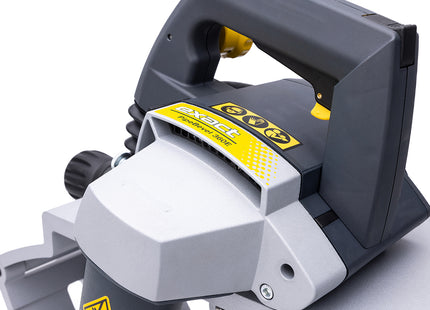

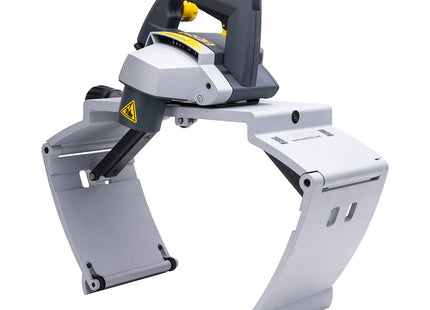

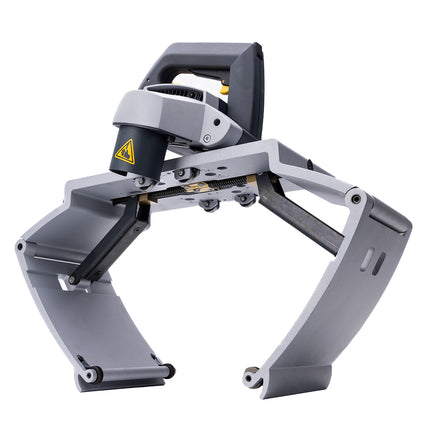

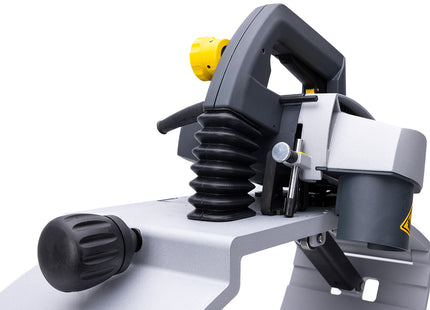

plumBOSS exactCUT 360E Pipe Beveller - 110mm-360mm | PEC360EBEVELLER

Product form

Code: PEC360EBEVELLER

or call us on:
P:
1300 331 141


Categories: exactCUT Pipe Cutters, exactCUT Pipe End Bevellers - For Mild & Stainless Steel Only, Pipe and Tube Cutting, Pipe Bevellers, Steel Pipe,
Icon for shopping_bagFind a Retailer

1000+ Distributors Australia wide! Call us on 1300 331 141 to find your nearest retailer.

Downloads:
Download plumBOSS exactCUT 360E Pipe Beveller - 110mm-360mm | PEC360EBEVELLER User Manual

plumBOSS exactCUT 360E Pipe Beveller - 110mm-360mm | PEC360EBEVELLER Description

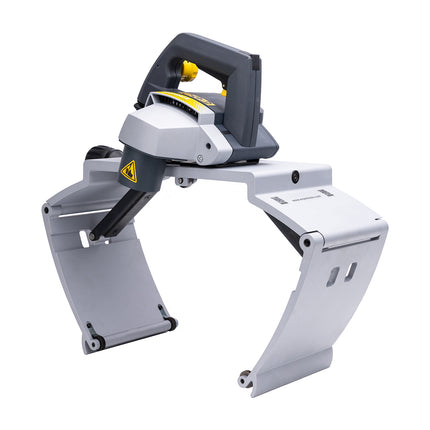

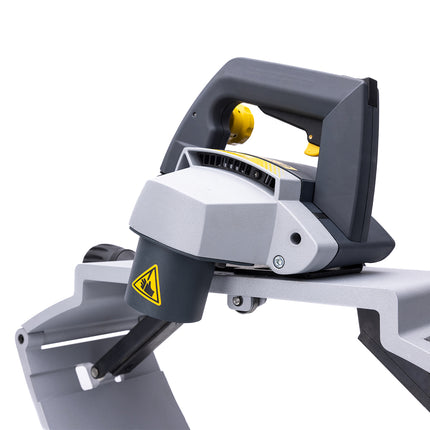

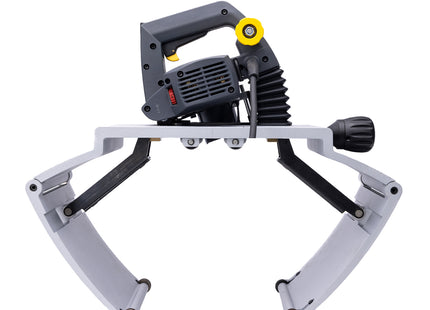

The Exact PipeBevel 360E is a portable and easily transportable pipe beveller that produces continuous good results for on-site pipe bevelling applications. With this machine you will make easy, fast and consistent bevels to a variety of pipe materials of steels and stainless steels.

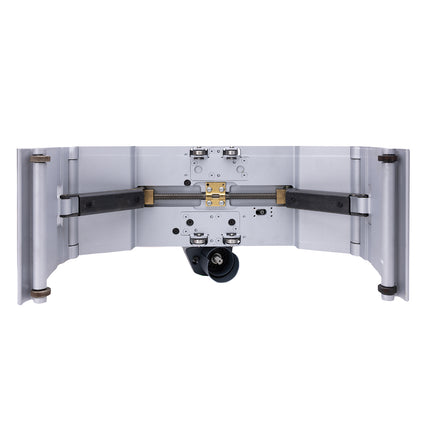

The set-up is fast and simple. The clean and user-friendly design makes it fast to mount on pipe sizes 110 mm - 360 mm (4.33"- 14.17") and up with a maximum wall thickness of 10mm (0.39").

The built-in stopper feature enables and makes it easy for the operator to make similar additional bevels to the same pipe outside diameter. This reduces the cycle times dramatically and ultimately improves the workflow.

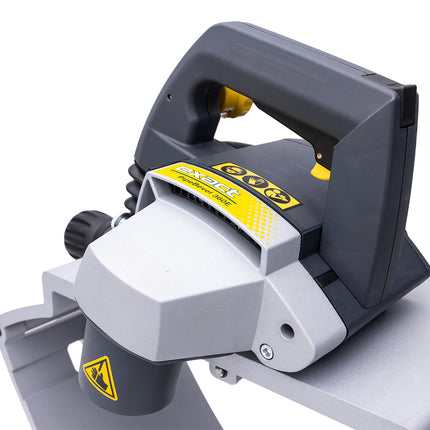

The cutting heads to the PipeBevel 360E are available in the most used bevel angles (30°, 37.5° and 45°). It is also possible to make different "˜tailored' bevel angles if required. The cutting head is to be ordered separately due to the required varying bevel angle.

The cutting head of the beveller has 3 cutting tips, each of them having 4 cutting edges to rotate once becoming blunt. Thanks to this, you will have a prolonged beveller blade tip life. The cutting tips are also ordered separately.

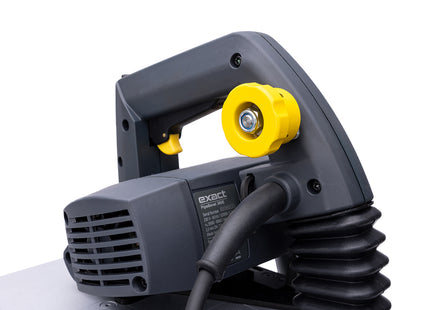

The user interface of the machine is similar to Exact pipe saws, which makes it easy for the operator to adapt after cutting a pipe with any Exact pipe saw.

  • Suitable for pipes of steels and stainless steels.
  • Suitable for pipe sizes of 110 mm - 360 mm (4.33"- 14.17") and up with a wall thickness of 10mm (0.39").
  • Does not create flames or sparks.
  • External cutting head is available in three bevel angles (30°, 37.5° and 45°).
  • Easy, fast and consistent bevels.
  • Fast and simple set-up.

The pack includes

  1. PipeBevel 360E beveller
  2. Shoulder bag
  3. Pipe support x 2
  4. Instructions
  5. Allen key 5mm

Specifications

  • Pipe OD: 110mm – 360mm (4“ – 15“)
  • Max. wall thickness: 10mm (0.39”) steel
  • Pipe material: Aluminum / Stainless steel / Steel
  • No-Load speed: 3500 – 8000 r/min
  • Power or Current: 1495 W (220-240 V)
  • Blade holder diameter: 48 mm (1.89”)
  • Different bevel angles: 30° / 37.5° / 45°
  • Weight: 11.2kg
