plumBOSS exactCUT 360PRO PipeCut & Bevel- 75-360mm | PEC360PROCB

Product form

SKU: PEC360PROCB

or call us on:
P: 1300 331 141


Icon for shopping_bagFind a Retailer

1000+ Distributors Australia wide! Call us on 1300 331 141 to find your nearest retailer.


Download plumBOSS exactCUT 360PRO PipeCut & Bevel- 75-360mm | PEC360PROCB Adjustment Wheel Guide

Description

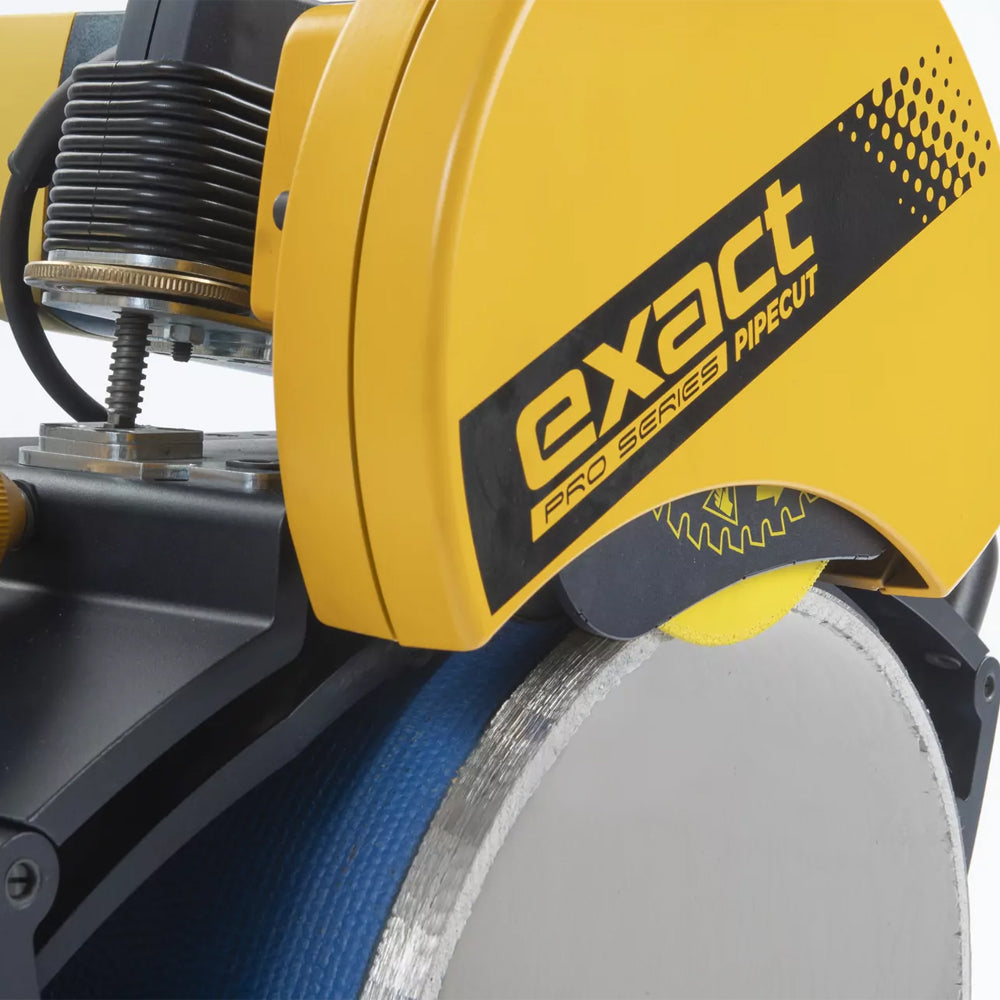

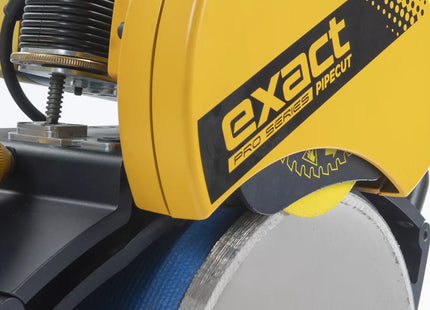

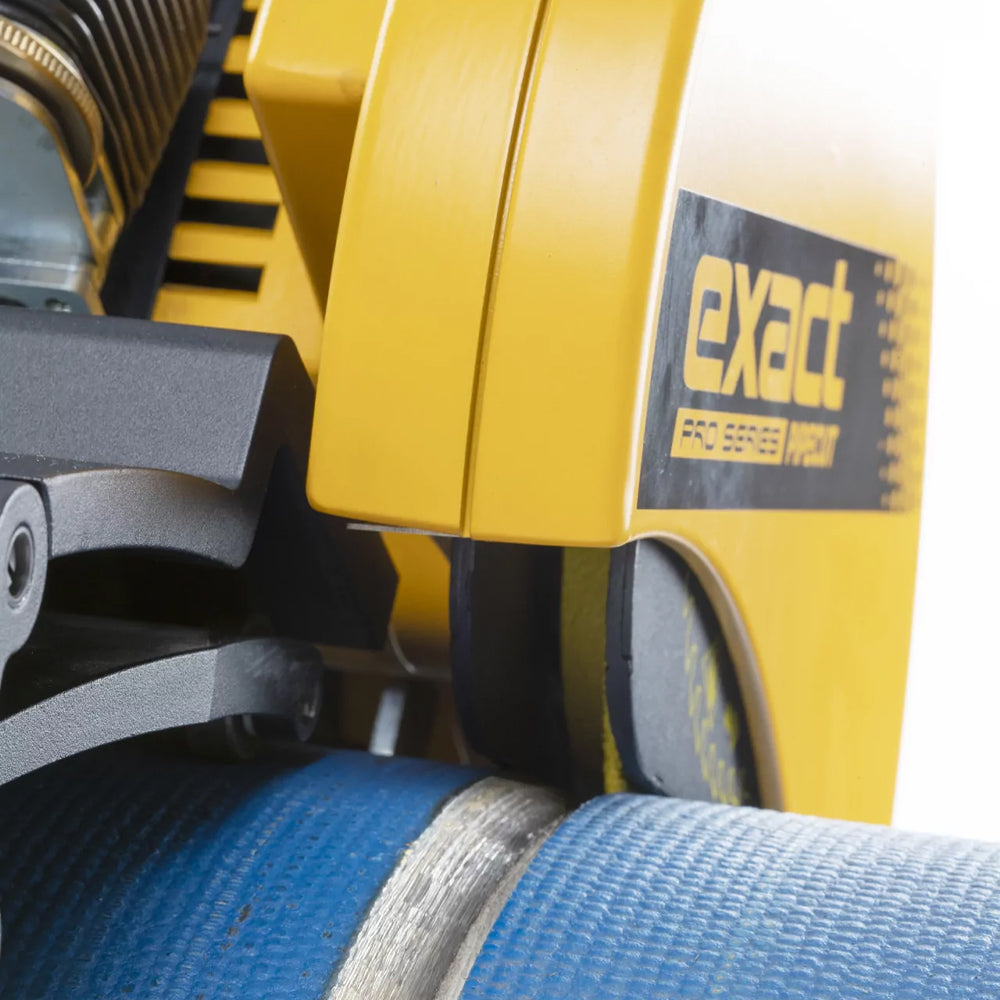

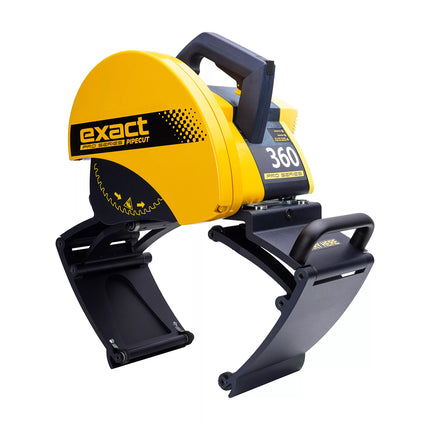

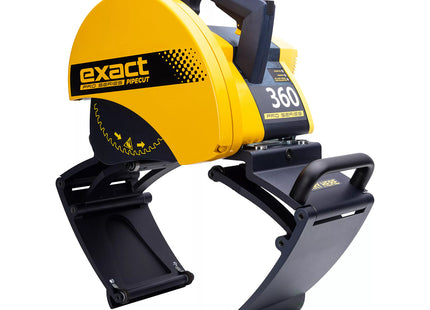

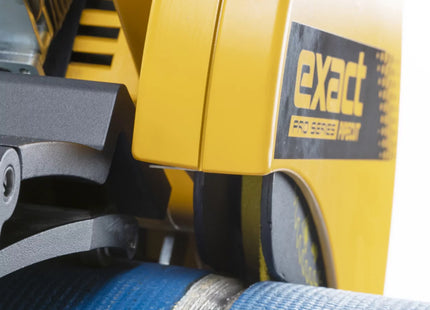

Exact PipeCut+Bevel 360 Pro Series is a cutting and beveling machine for water & sewer pipelines. The Cut+Bevel happens simultaneously in just one process. Suitable for cast iron and plastic pipes. Equipped with the best diamond disc on the market.

You can easily choose the bevel length and depth with the machine's adjustments. You can even adjust the bevel depth during the cutting process.

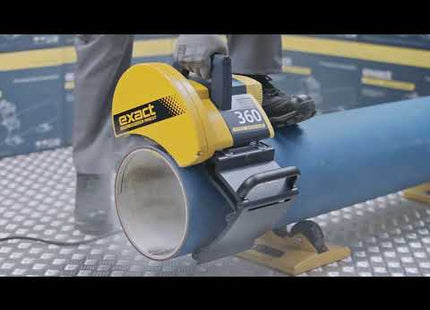

The machine is extremely easy and safe to use, and revolutionizes the way how cast iron pipes are being worked on. Thanks to the machine's portability and mobility, you can carry the machines to where the pipe is, instead of bringing the pipe to the machine.

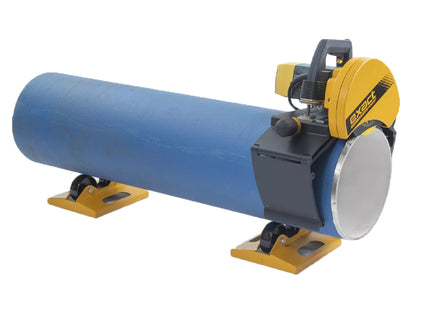

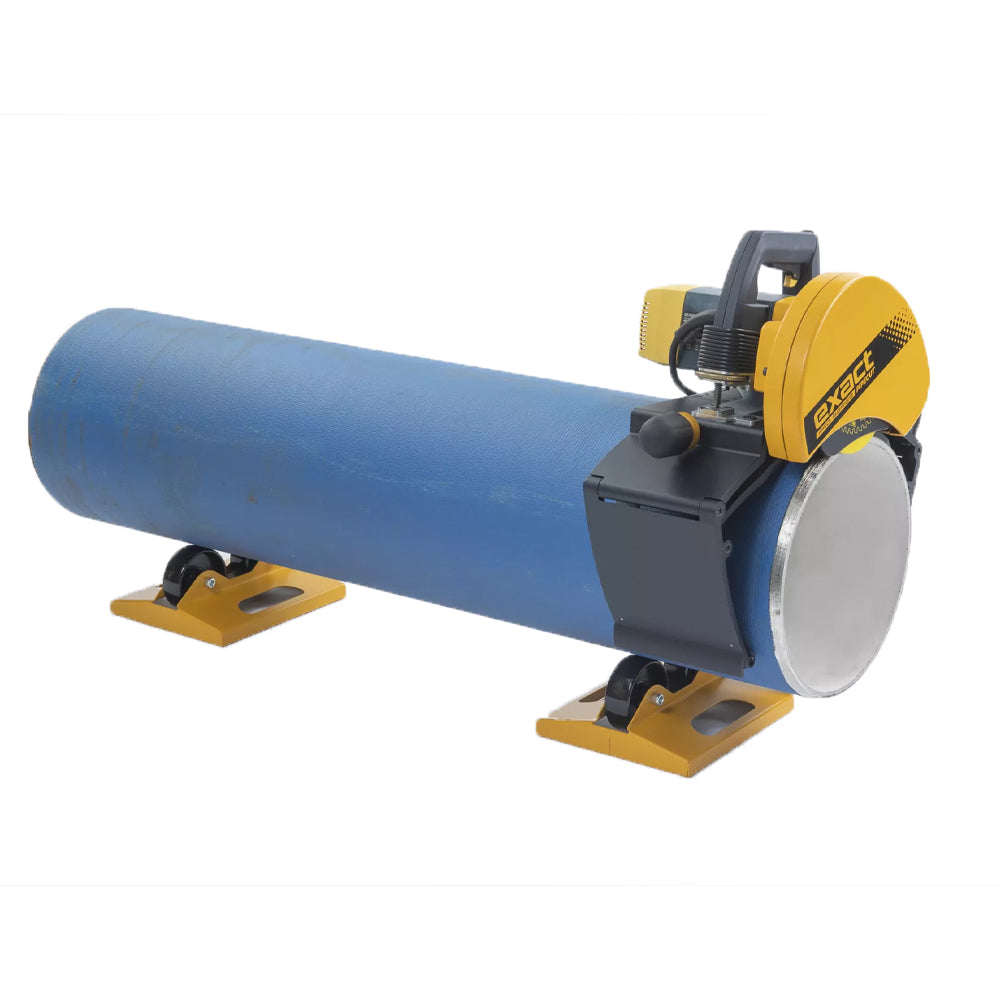

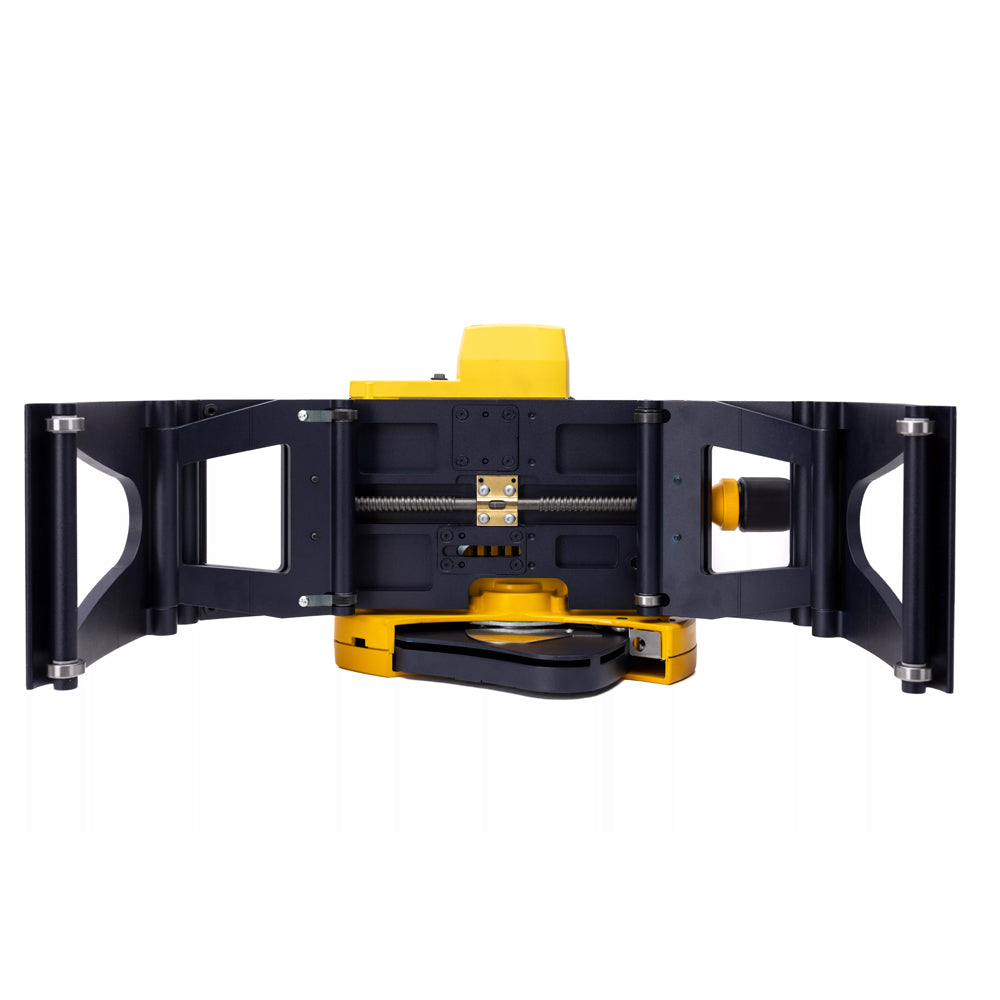

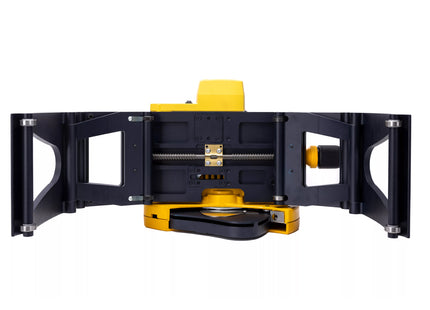

The patented gripping unit ensures firm attachment to the pipe and makes the use of machine convenient. The machine package comes with pipe supports that are placed on the ground and for the pipe to be placed upon.

Additionally, you can order a special blade guard featured with a vacuum port (when cutting cast iron with concrete layer and plastics) to easily vacuum all the small dust/chips and take the user-friendliness to the next level.

The Pack Includes

  1. Exact PipeCut+Bevel 360 Pro Series pipe cutting and beveling machine
  2. PipeCut Bag PS
  3. Pipe Support 1x Double and 2x Single and tool for changing blade in the bag
  4. Operating instructions
  5. Hex socket key 5 mm and 2 mm fitted to the machine
  6. TCT 165 blade and specific blade guard for it

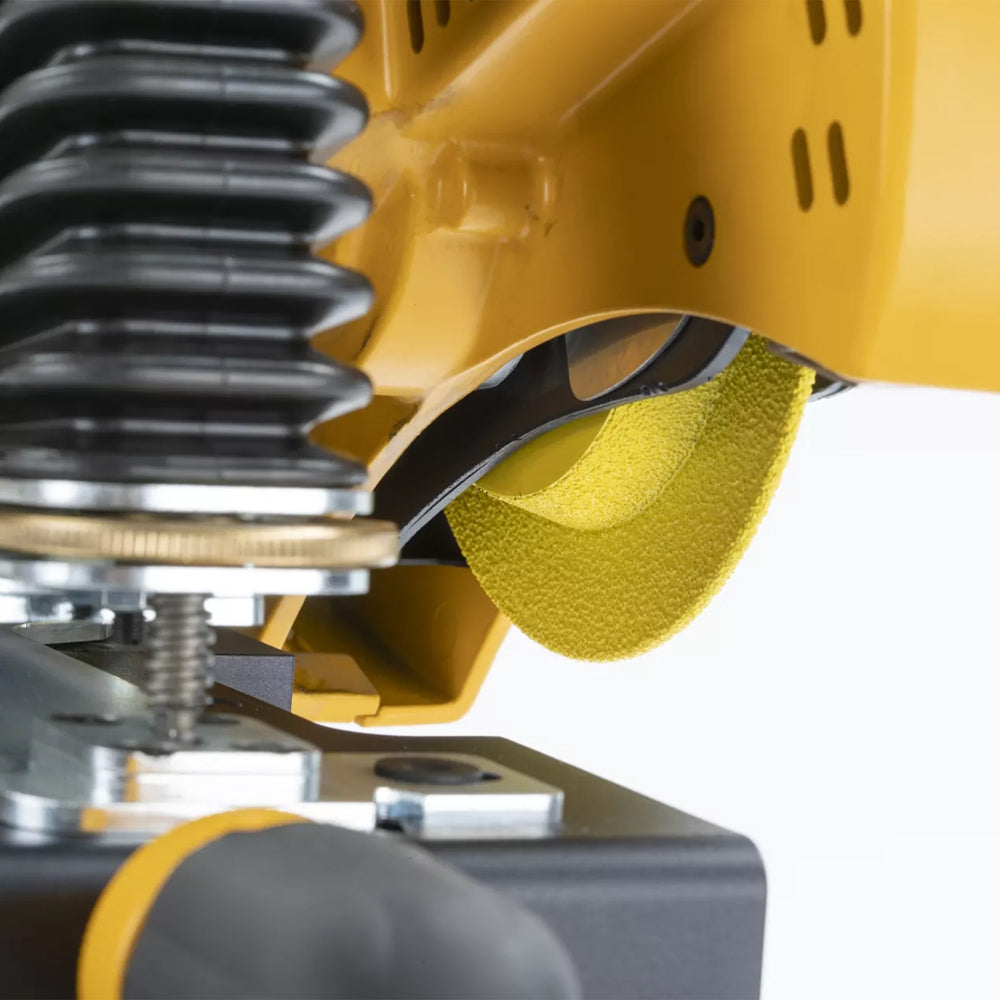

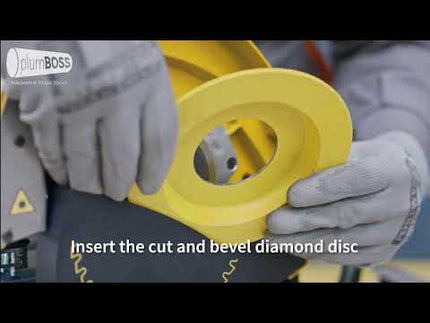

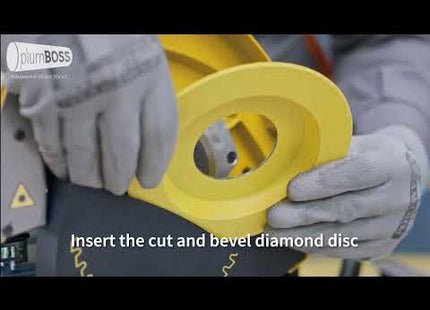

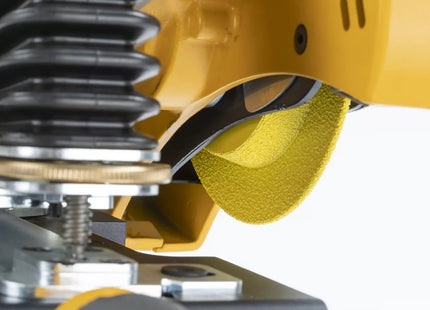

  7. Diamond Cut Bevel disc 165 mm and specific blade guard for it



Specifications

  • Pipe OD: 75mm – 360mm (3”- 14”)
  • Max. Wall Thickness: 20mm (0.8”) steel / 45mm (2") Plastic
  • Max. Wall Thickness Cut+Bevel: 20mm
  • Pipe Material: Cast iron / Ductile (nodular cast iron) / Plastic / Stainless Steel / Steel

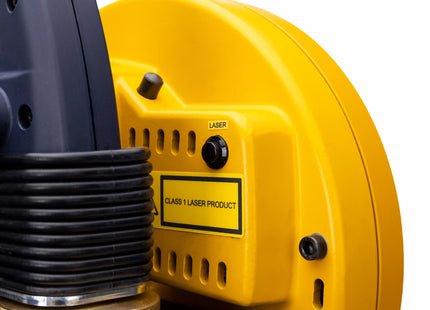

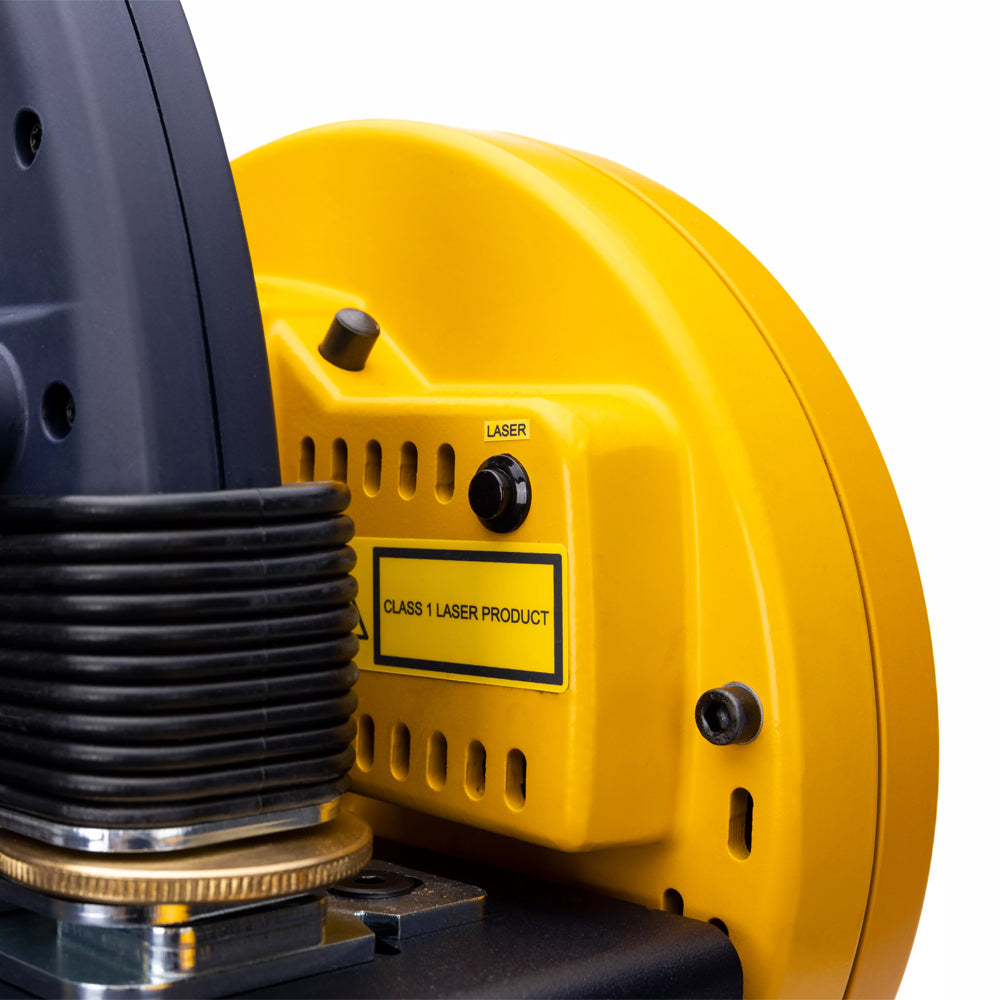

  • Laser for Cutting Point Definition: Yes
  • Overheat Control: Yes
  • No-Load Speed: I=1900 r/min / II=2885 r/min
  • Blade Diameter: 140mm (5.51”) / 165 mm (6.5") / 180 mm (7.2") / 190 mm (7.6")
  • Mounting Bore: 62mm (2.44”)
