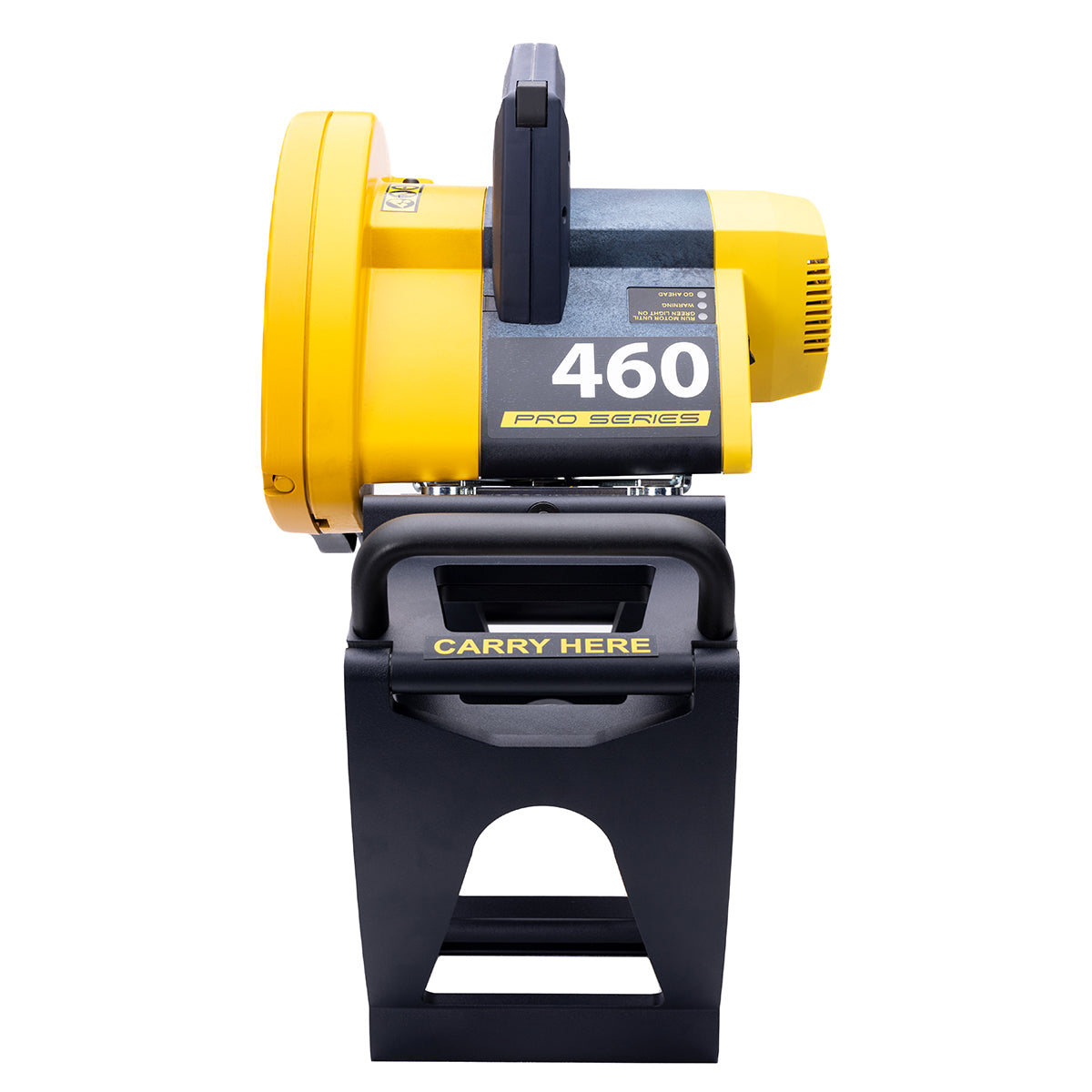

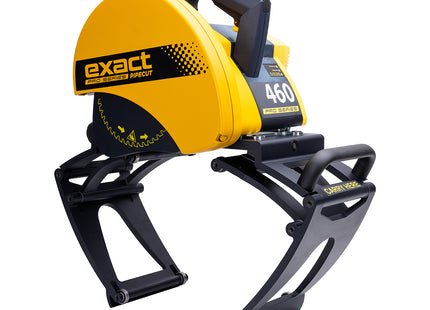

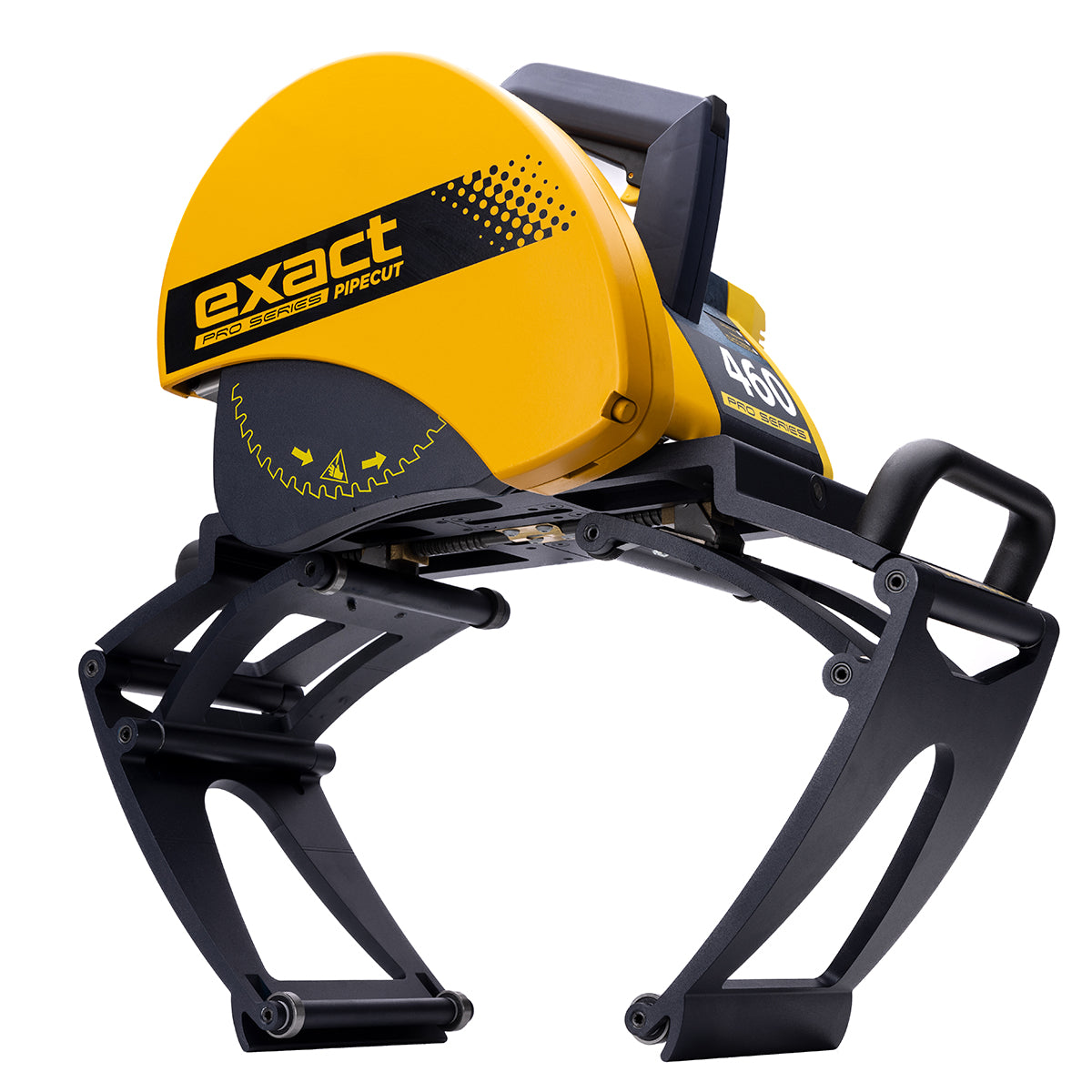

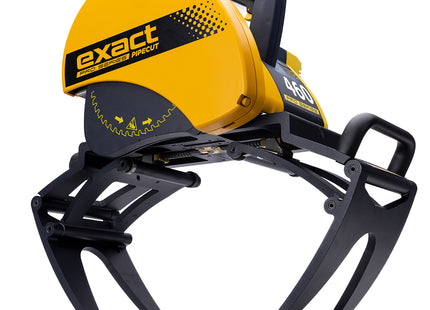

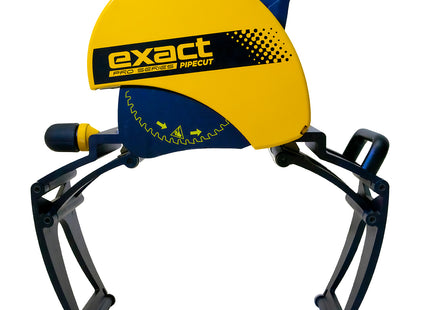

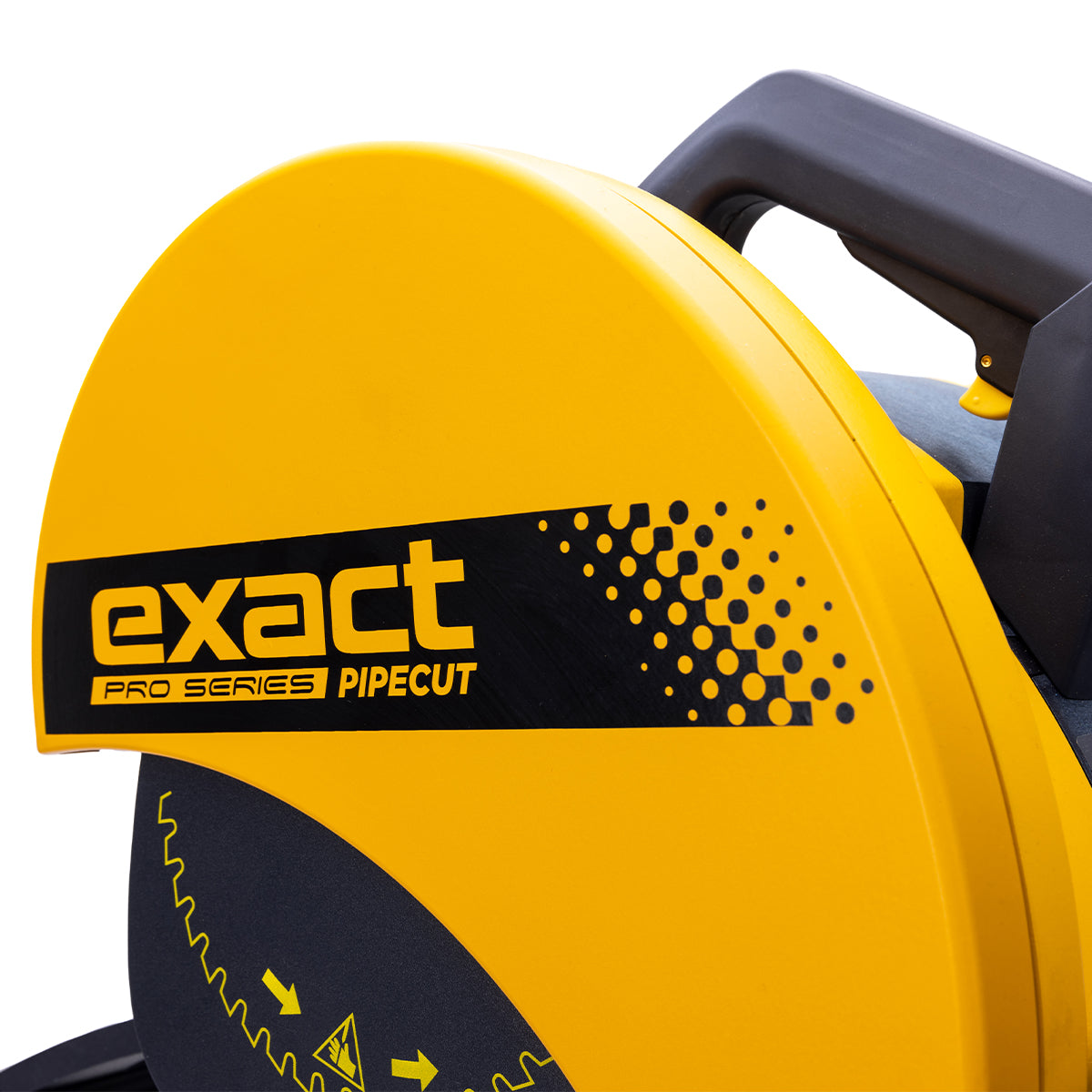

plumBOSS exactCUT 460PRO 100-460mm | PEC460PRO

Product form

STOCK CODE: PEC460PRO

or call us on:
P: 1300 331 141


Icon for shopping_bagFind a Retailer

1000+ Distributors Australia wide! Call us on 1300 331 141 to find your nearest retailer.

Downloads:
Download plumBOSS exactCUT 460PRO 100-460mm | PEC460PRO User Manual
Download plumBOSS exactCUT 460PRO 100-460mm | PEC460PRO Adjustment Wheel Guide

Description

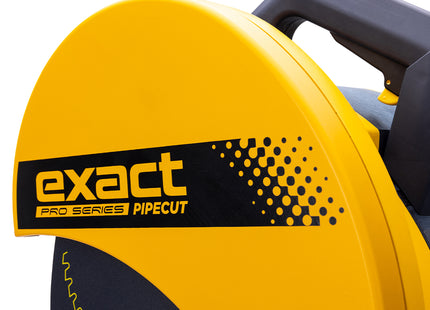

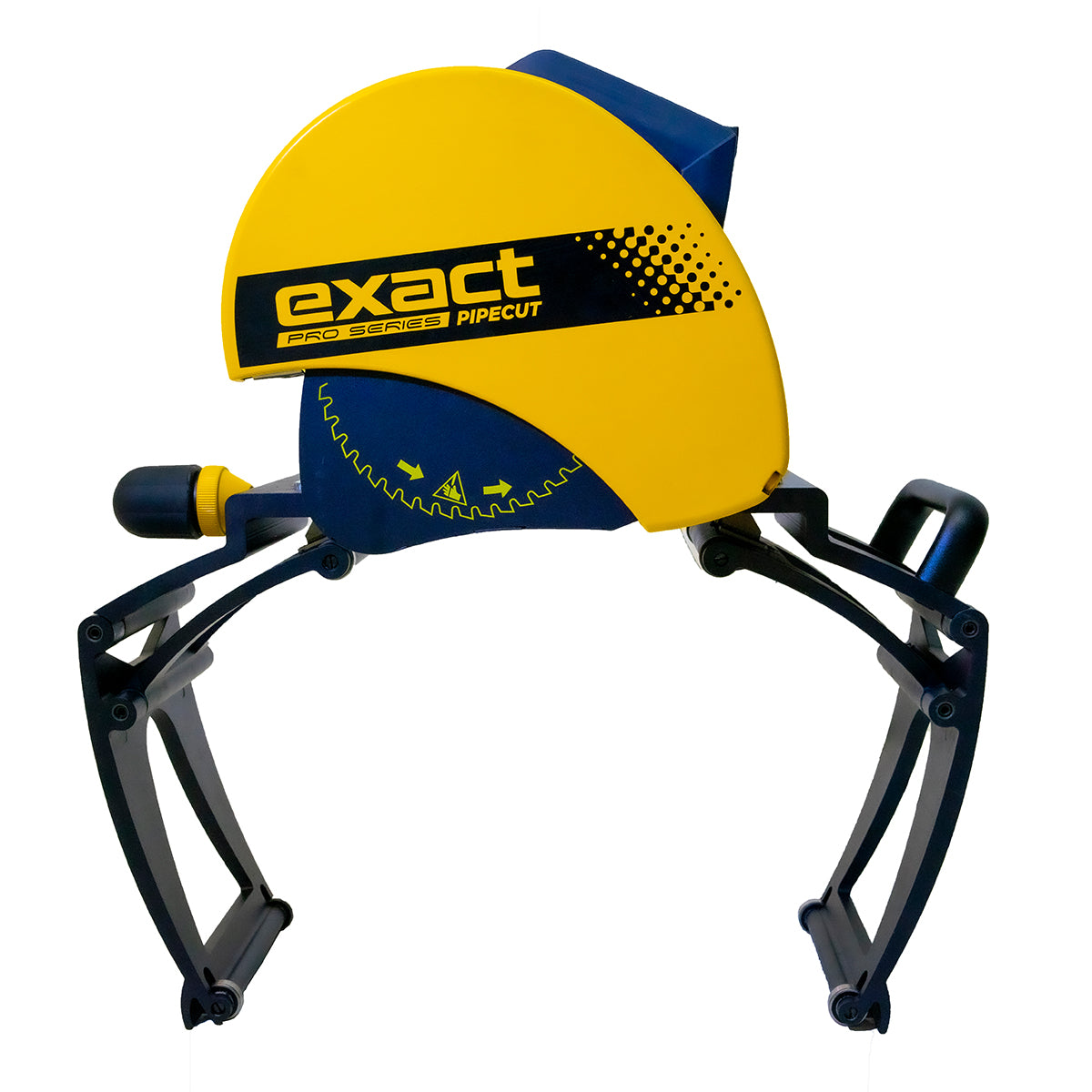

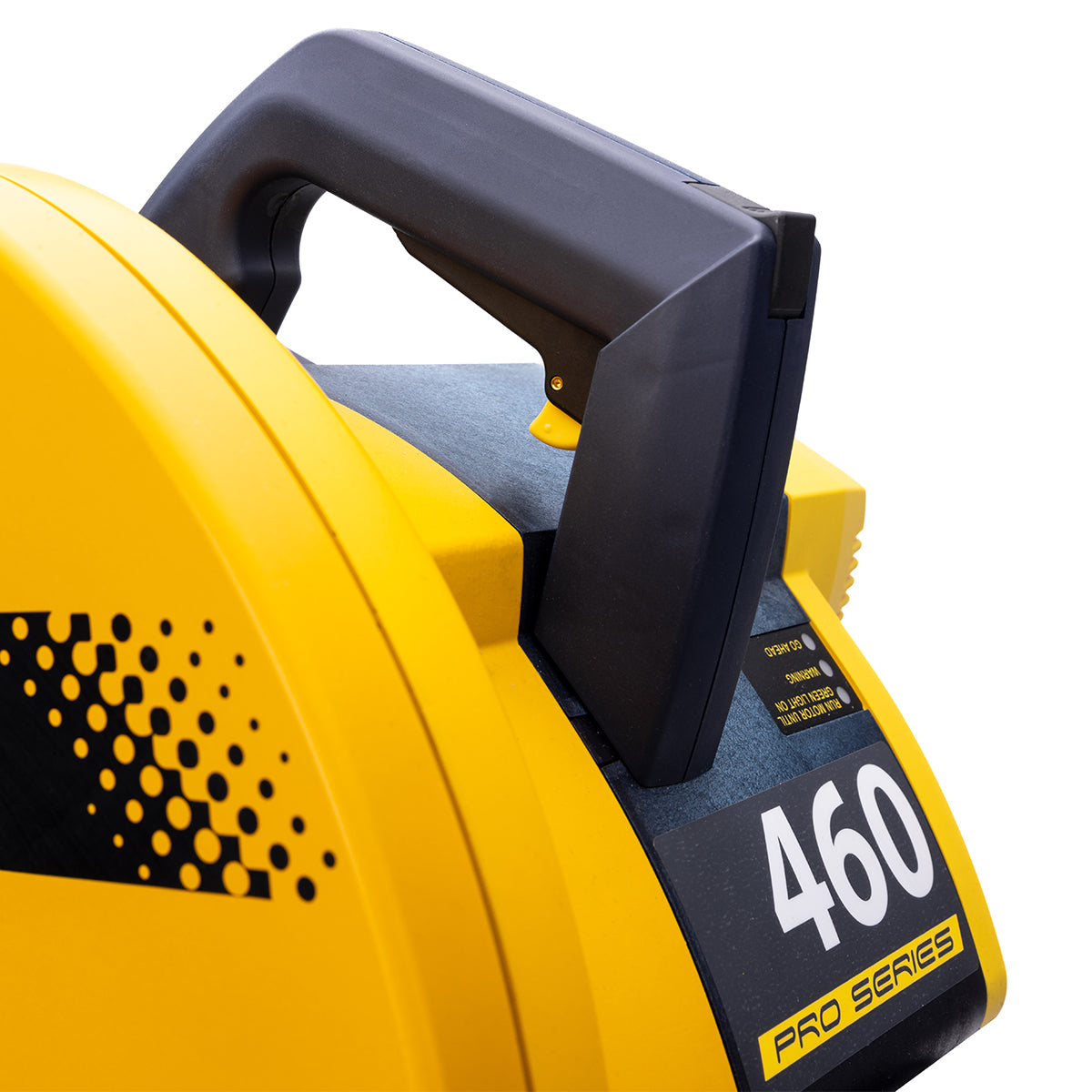

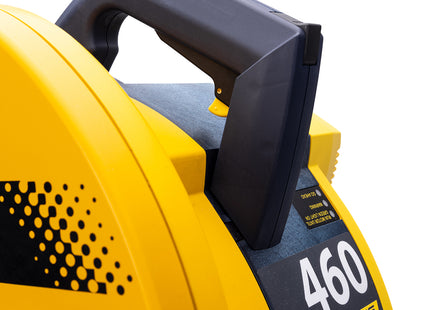

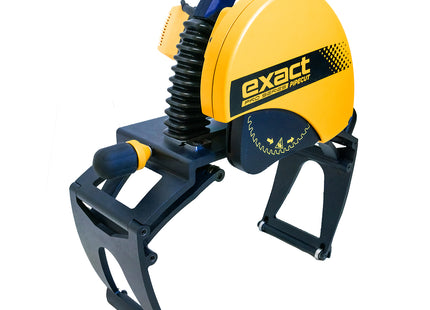

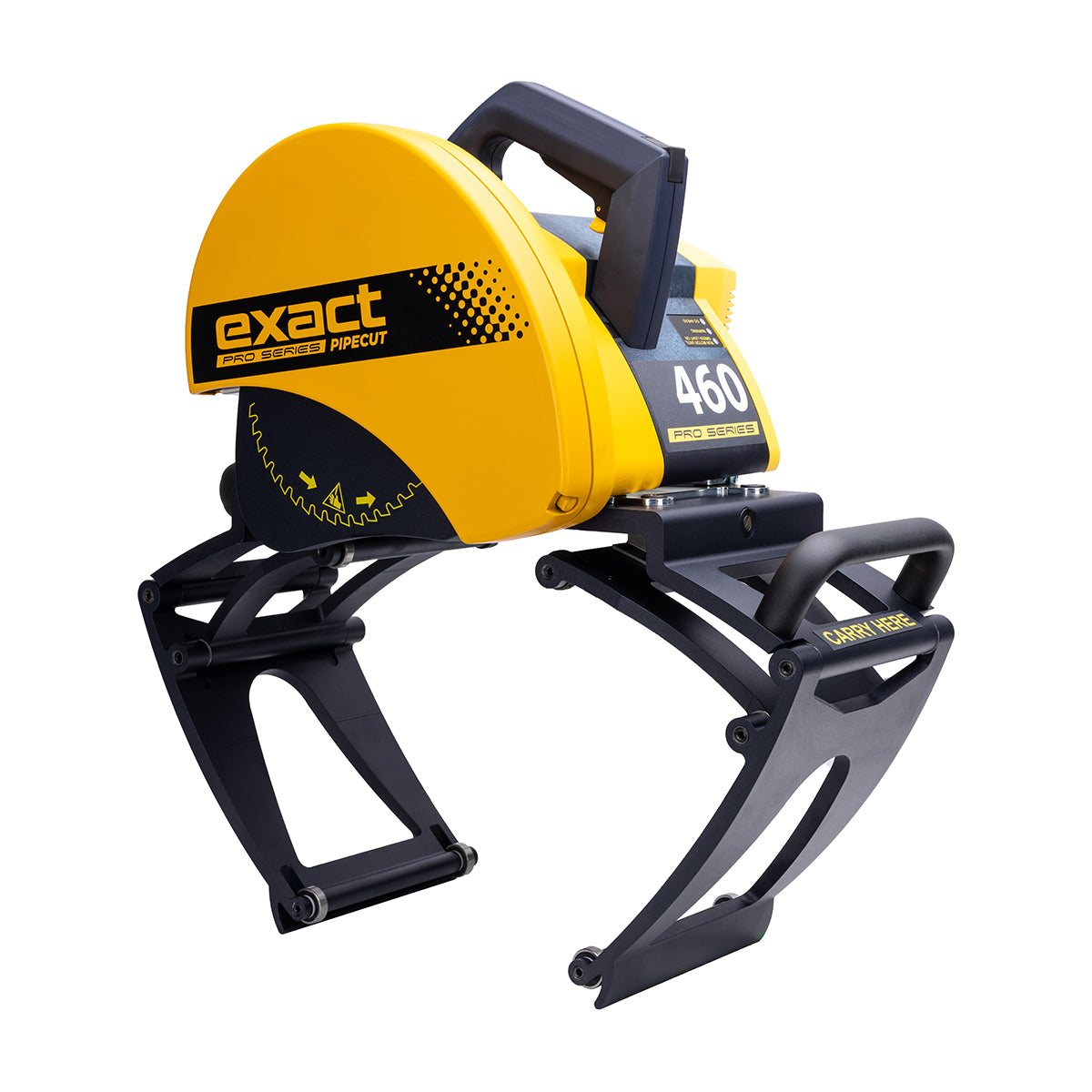

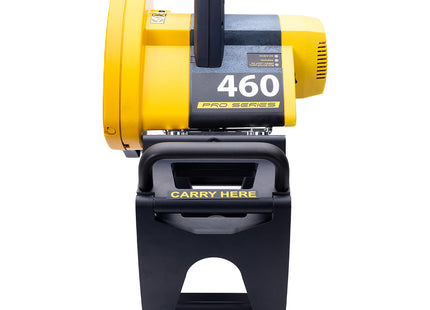

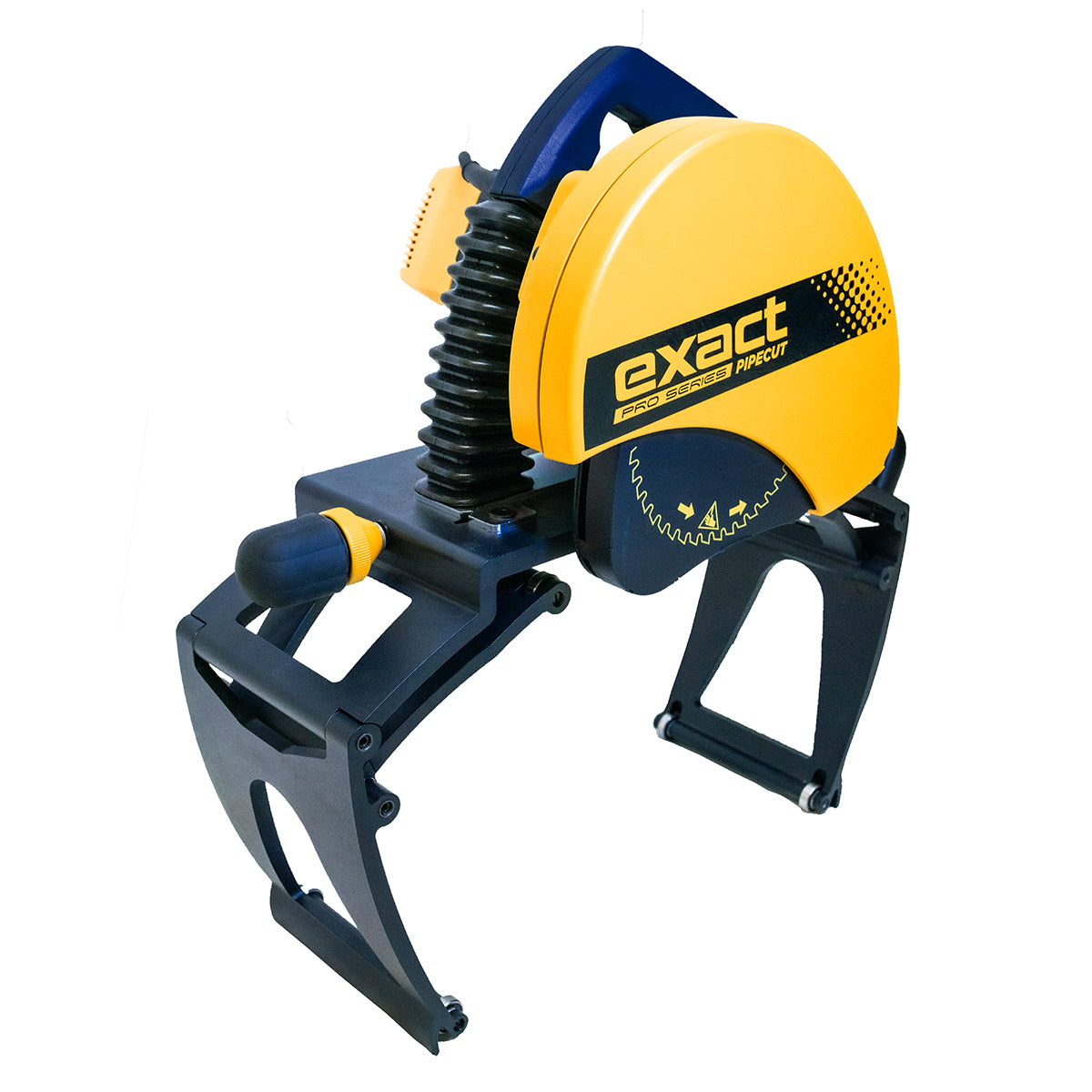

Exact PipeCut 460 Pro Series is a groundbreaking new machine and is the most advanced pipe cutting machine of the Exact's Pro Series. Intended for heavy-duty, large and medium pipes. You will effortlessly make straight and precise pipe cuts on all pipe materials.

Like the other Exact machines, it is extremely safe and easy to use as a result of the well designed mechanics. The machine is portable and can be easily carried to where the cuts need to be done. You can cut steel pipes with wall thickness of (up to) 20 mm and 50 mm for plastics. All other pipe materials are suitable to be cut as well. Suitable on pipe diameters 100 - 460 mm. The incredibly strong motor along with other features and patented gripping unit makes a real timesaver on the worksite, boosting productiviness and leaving more time for other work.

Our over 20 years of expertise in developing pipe cutting and finishing tools has resulted in probably the most advanced pipe cutting systems ever made. Tens of thousands of worldwide users guarantee this, as our machines provide a unique, superior solution (compared to former methods) for pipe cutting of small to medium-large pipes.

  • Pipe cutting has never been this easy, fast and safe.
  • Much stronger 2500W 230V / 2200W 110V motor.

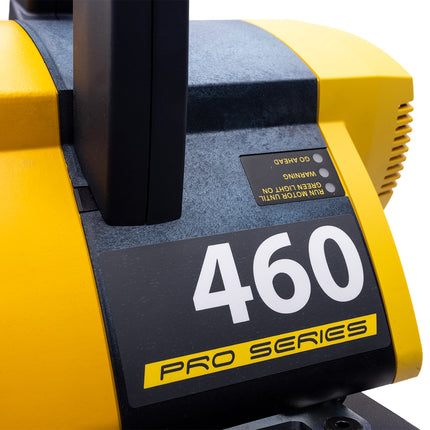

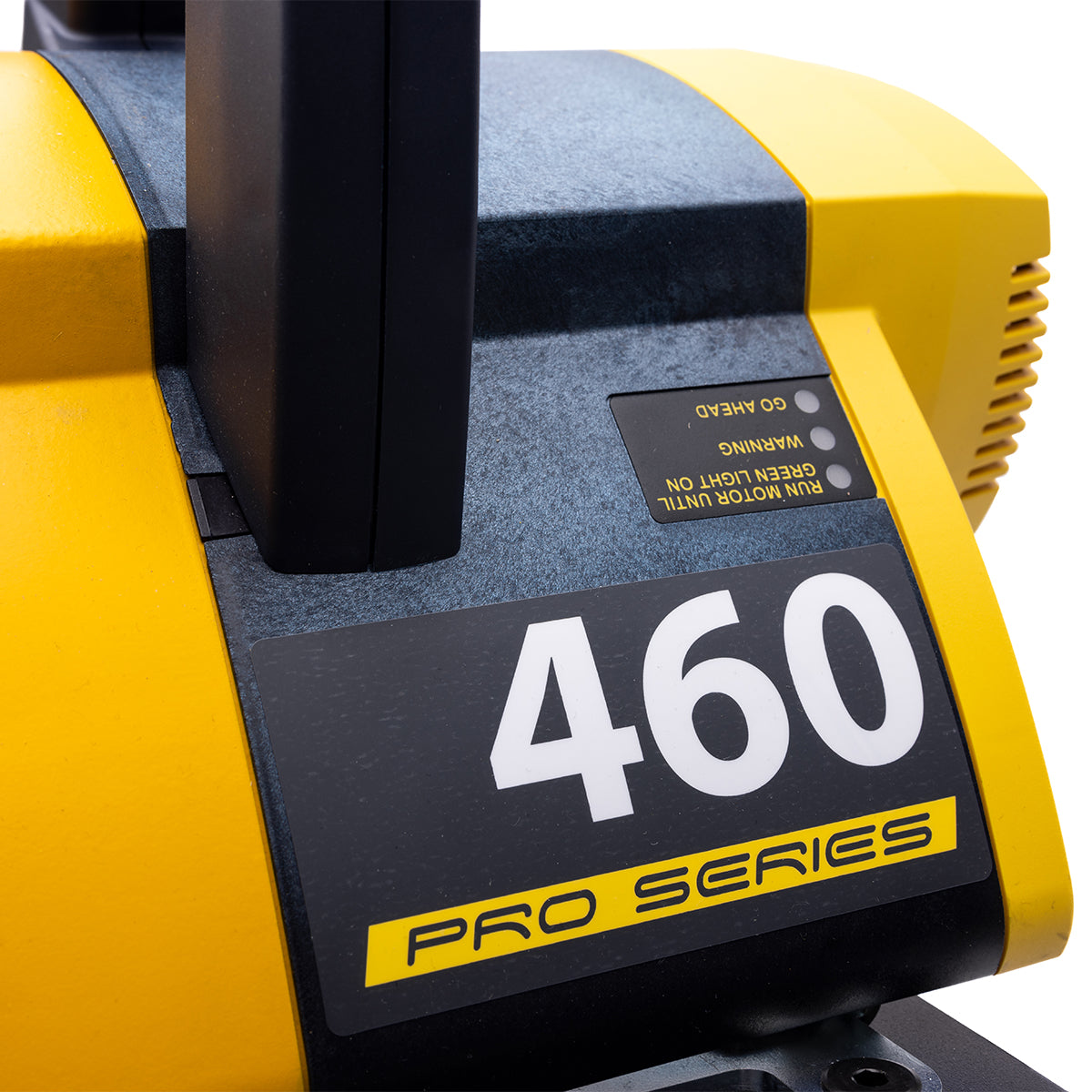

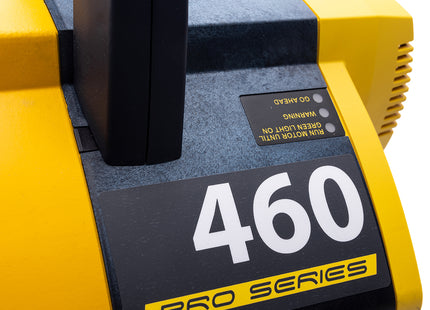

  • Electronics protecting the motor from overload and traffc lights" guiding the operator.
  • Laser indicator for precise cutting.
  • Improved adjustment mechanism for straight cutting.
  • Fine adjusted to high-end quality.
  • Professional quality - Made in EU.
  • Cuts steel pipes with wall thickness up to 20 / 15 mm.

The Pack includes

  1. PipeCut Bag
  2. Exact PipeCut 460 Pro Series pipe saw
  3. Pipe Supports 1x Double and 2x Single and tool for changing blade in the bag.
  4. Operating instructions
  5. Hex socket key 5 mm and 2 mm fitted to the machine
  6. TCT 165 blade fitted to the machine

THIS UNIT CAN TAKE 165 AND 180 SIZE BLADES

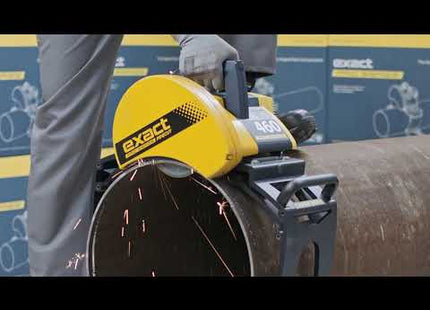

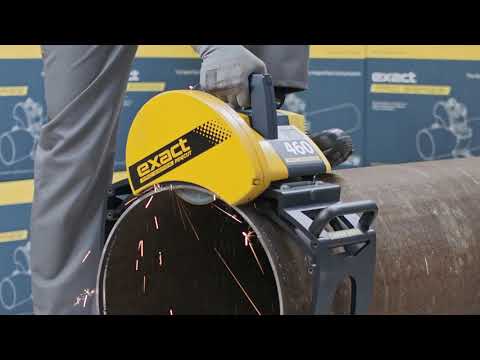

exactCUT Training



Specifications

  • Pipe OD: 100mm – 460mm (4”- 18”)
  • Max. wall thickness: 20mm (0.8”) steel / 50 mm (2”) plastic
  • Pipe material: Cast iron / Copper / Ductile (nodular cast iron) / Plastic / Stainless steel / Steel
  • Laser for Cutting Point: Yes
  • Overheat Control: Yes
  • No-Load Speed: I=1900 r/min / II=2885 r/min
  • Blade Diameter: 140mm (5.51”) / 165 mm (6.5") / 180 mm (7.2") / 190 mm (7.6")
  • Mounting Bore: 62mm (2.44”)
  • Weight: 17.7 kg (38.6 lbs)
  • Read more
