plumBOSS exactCUT 460PRO PipeCut & Bevel- 100-460mm | PEC460PROCB

Product form

Code: PEC460PROCB

or call us on:
P:
1300 331 141


Categories: exactCUT Cut And Bevel - Cast & Ductile Iron, exactCUT Pipe Cutters, Pipe and Tube Cutting, Pipe Bevellers, Steel Pipe, Tax Time Machines,

Download plumBOSS exactCUT 460PRO PipeCut & Bevel- 100-460mm | PEC460PROCB Parts Specs

plumBOSS exactCUT 460PRO PipeCut & Bevel- 100-460mm | PEC460PROCB Description

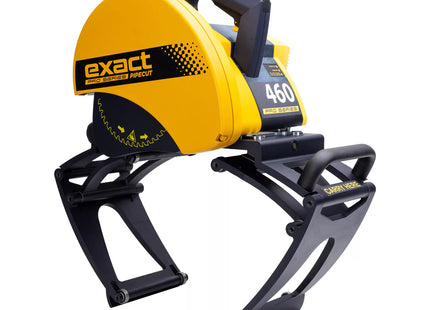

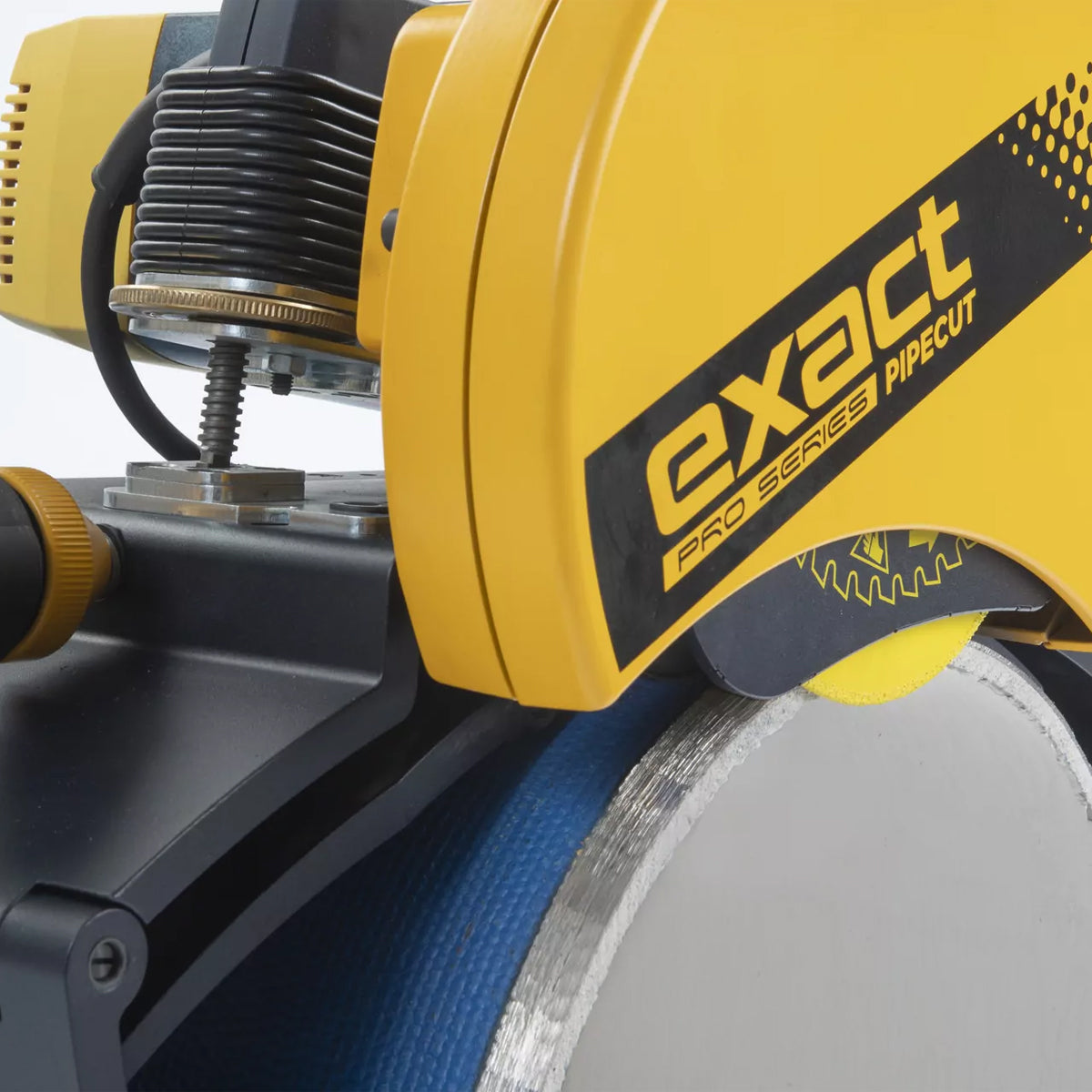

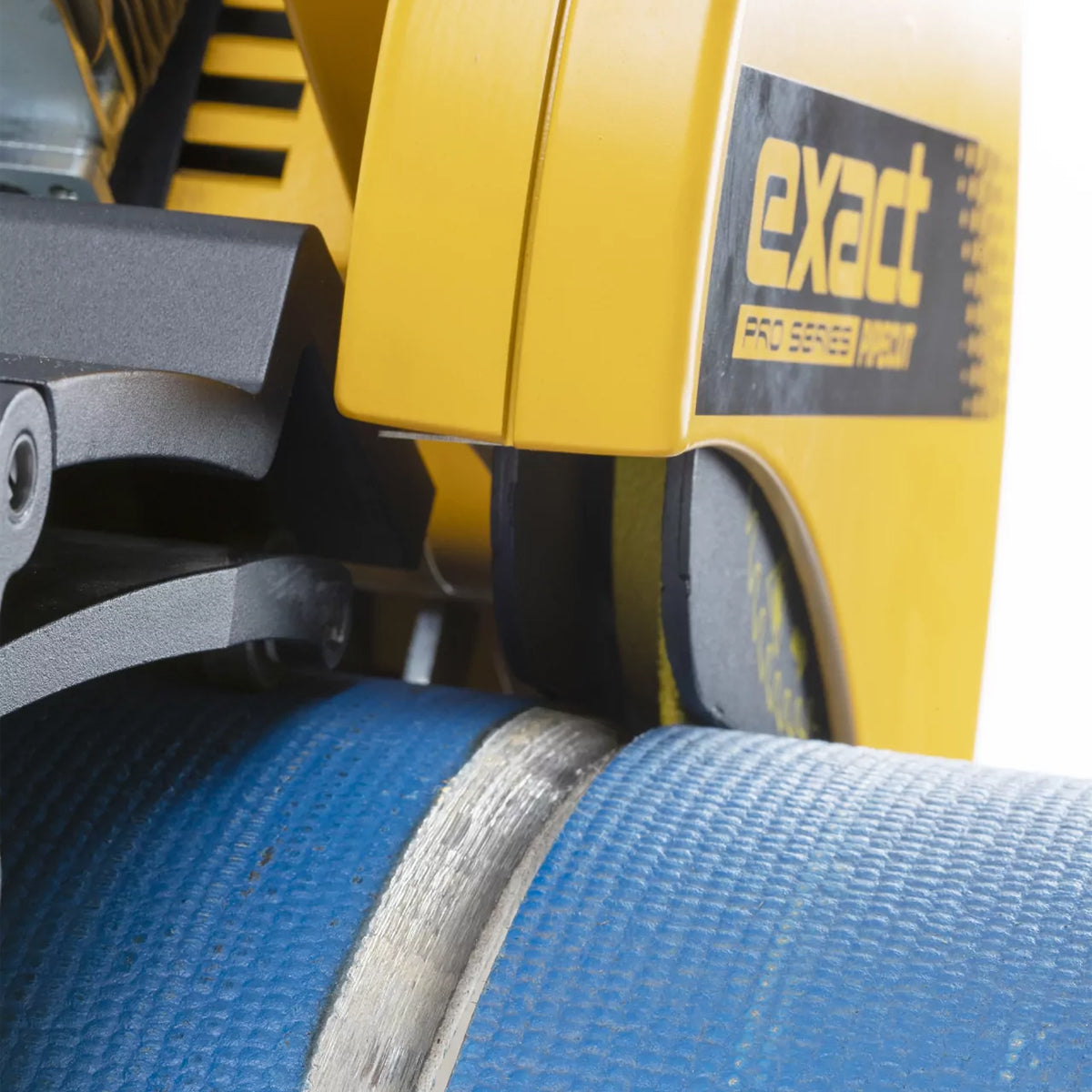

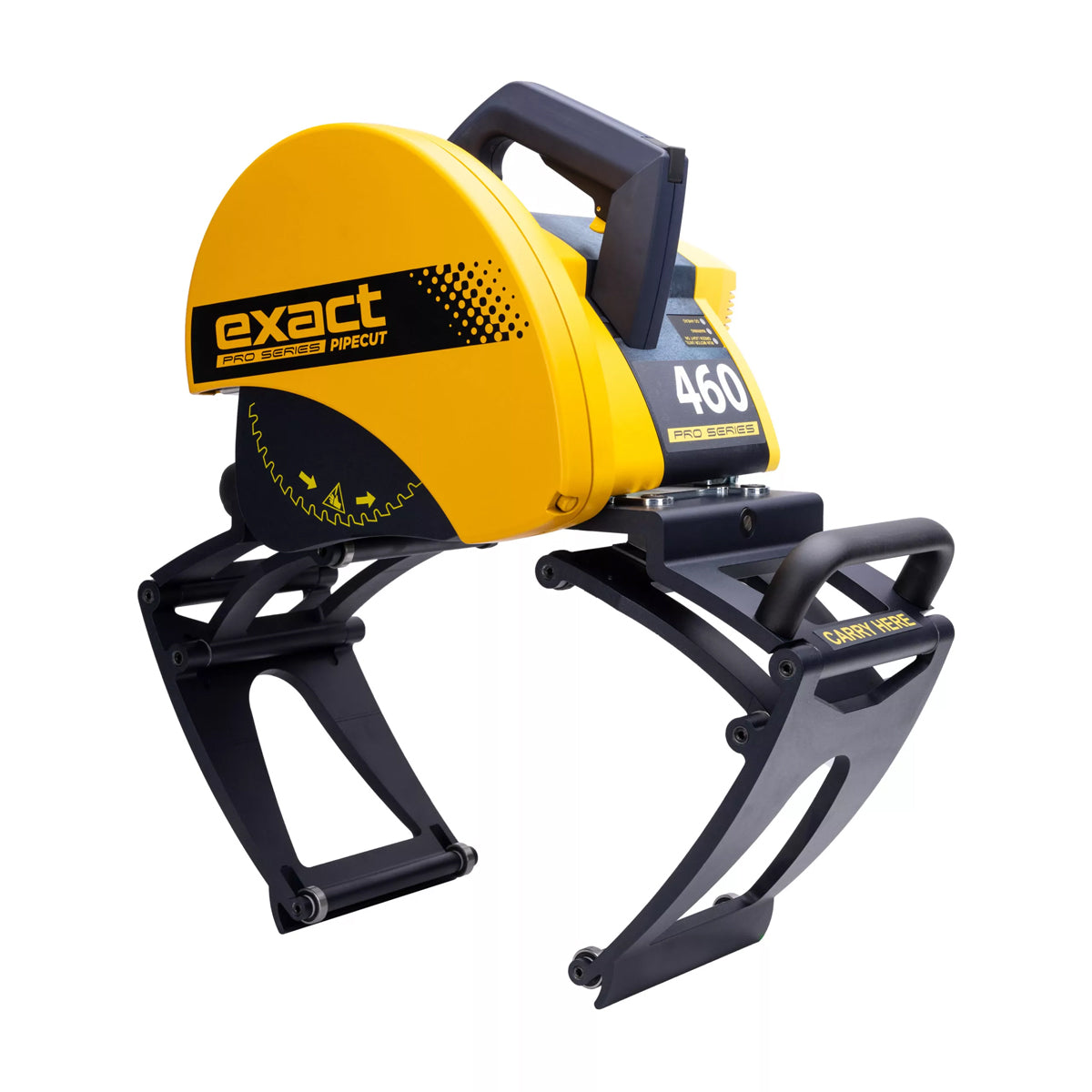

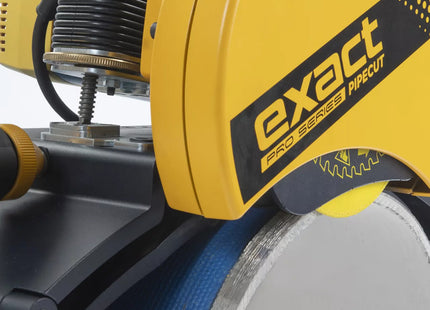

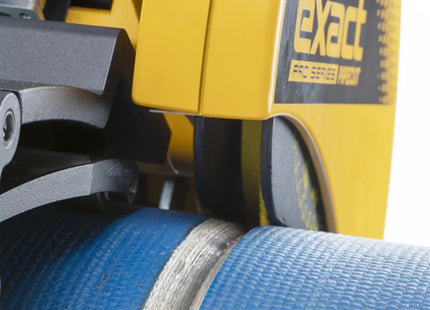

Exact PipeCut+Bevel 460 Pro Series is a cutting and beveling machine for water & sewer pipelines. The Cut+Bevel happens simultaneously in just one process. Suitable for cast iron and plastic pipes. Equipped with the best diamond disc on the market.

The PipeCut+Bevel 460 is identical to the PipeCut+Bevel 360 model, but with wider cutting capacity.

You can easily choose the bevel length and depth with the machine’s adjustments. You can even adjust the bevel depth during the cutting process.

The machine is extremely easy and safe to use, and revolutionizes the way how cast iron pipes are being worked on. Thanks to the machine’s portability and mobility, you can carry the machines to where the pipe is, instead of bringing the pipe to the machine.

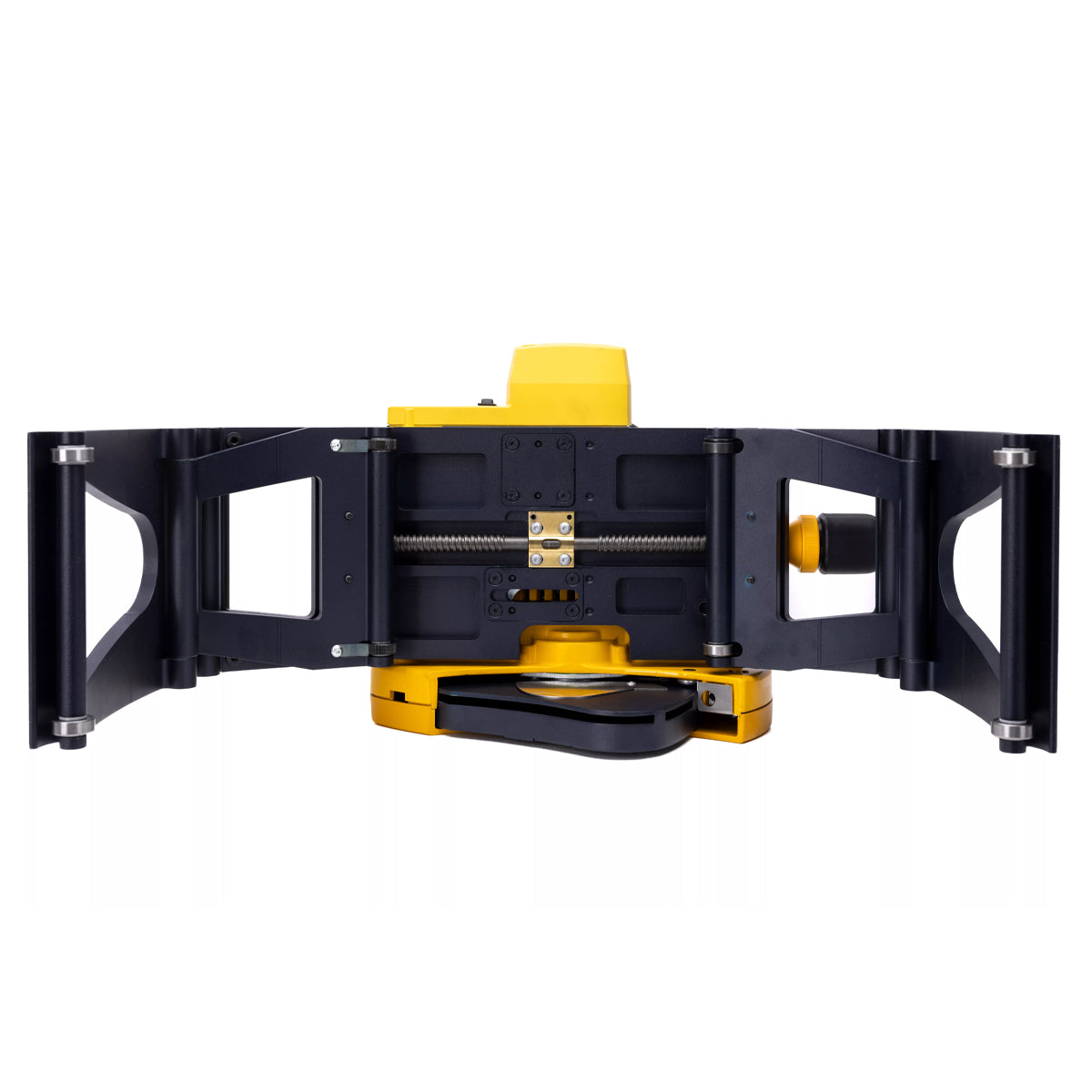

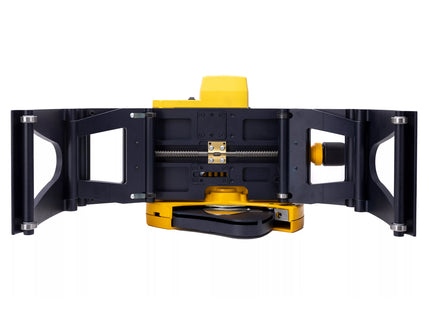

The patented gripping unit ensures firm attachment to the pipe and makes the use of machine convenient. The machine package comes with pipe supports that are placed on the ground and for the pipe to be placed upon.

Additionally, you can order a special blade guard featured with a vacuum port (when cutting cast iron with concrete layer and plastics) to easily vacuum all the small dust/chips and take the user-friendliness to the next level.

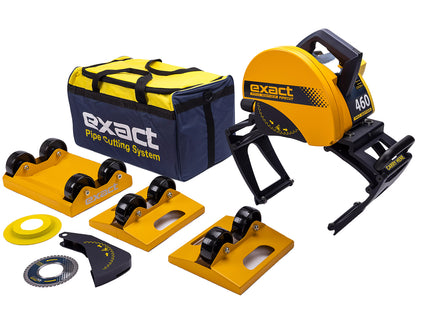

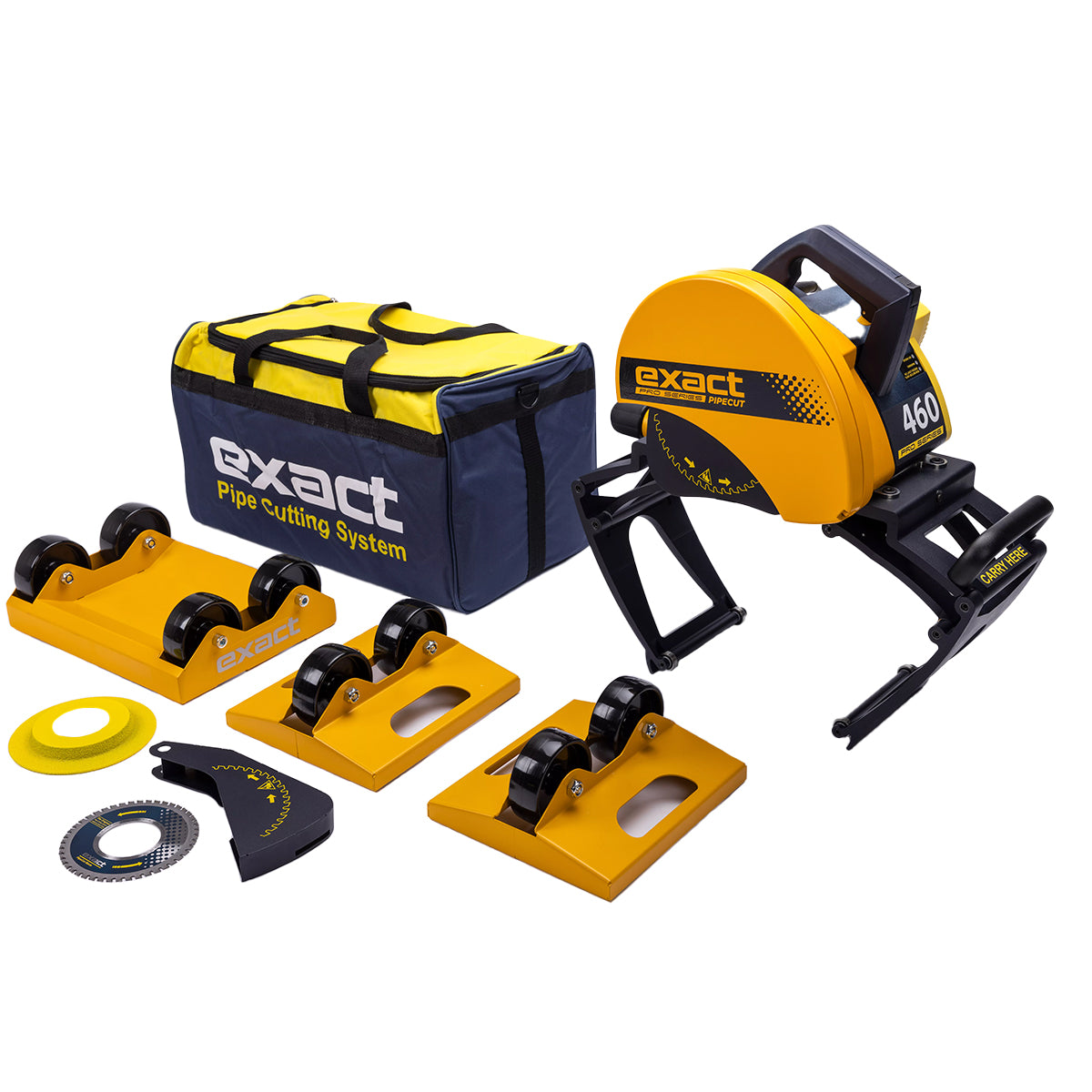

The Pack Includes

  1. Exact PipeCut+Bevel 460 Pro Series pipe cutting and beveling machine
  2. PipeCut Bag PS
  3. Pipe Support 1x Double and 2x Single and tool for changing blade in the bag
  4. Operating instructions
  5. Hex socket key 5 mm and 2 mm fitted to the machine
  6. TCT 165 blade and specific blade guard for it

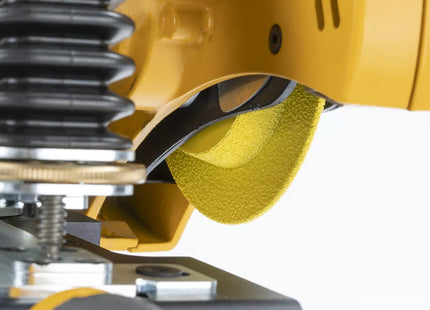

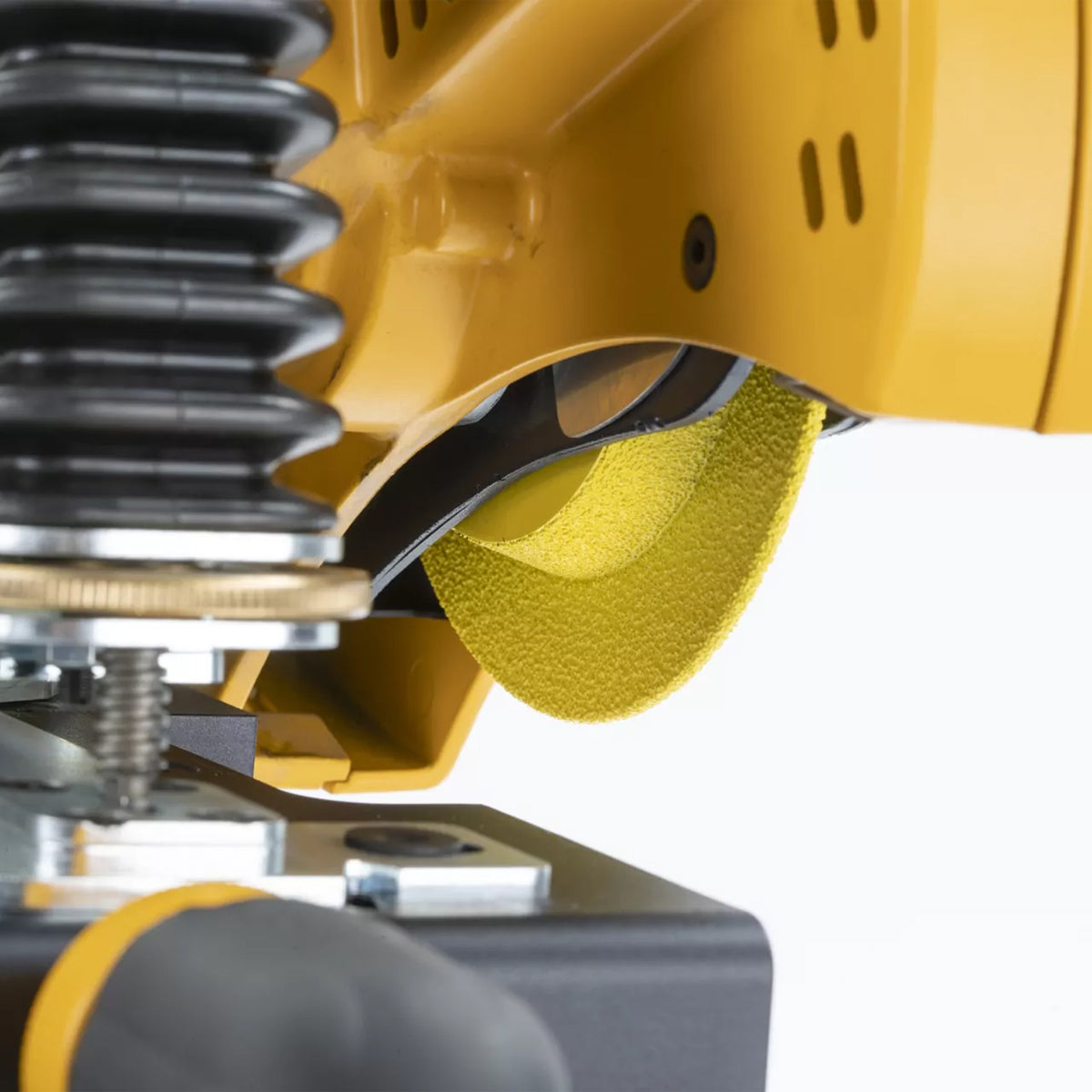

  7. Diamond Cut Bevel disc 165 mm and specific blade guard for it

    Specifications

    • Pipe OD: 100mm – 460mm (4”- 18”)
    • Max. Wall Thickness: 20mm (0.8”) steel
    • Max. wall thickness Cut+Bevel: 20mm (0.8”) cast iron
    • Pipe Material: Cast iron / Ductile (nodular cast iron) / Plastic / Stainless Steel / Steel

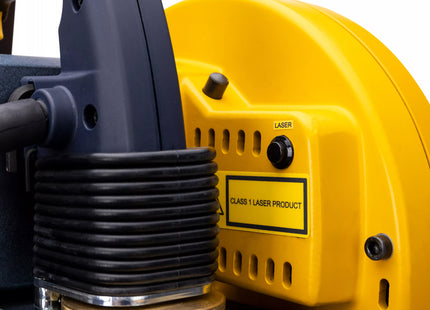

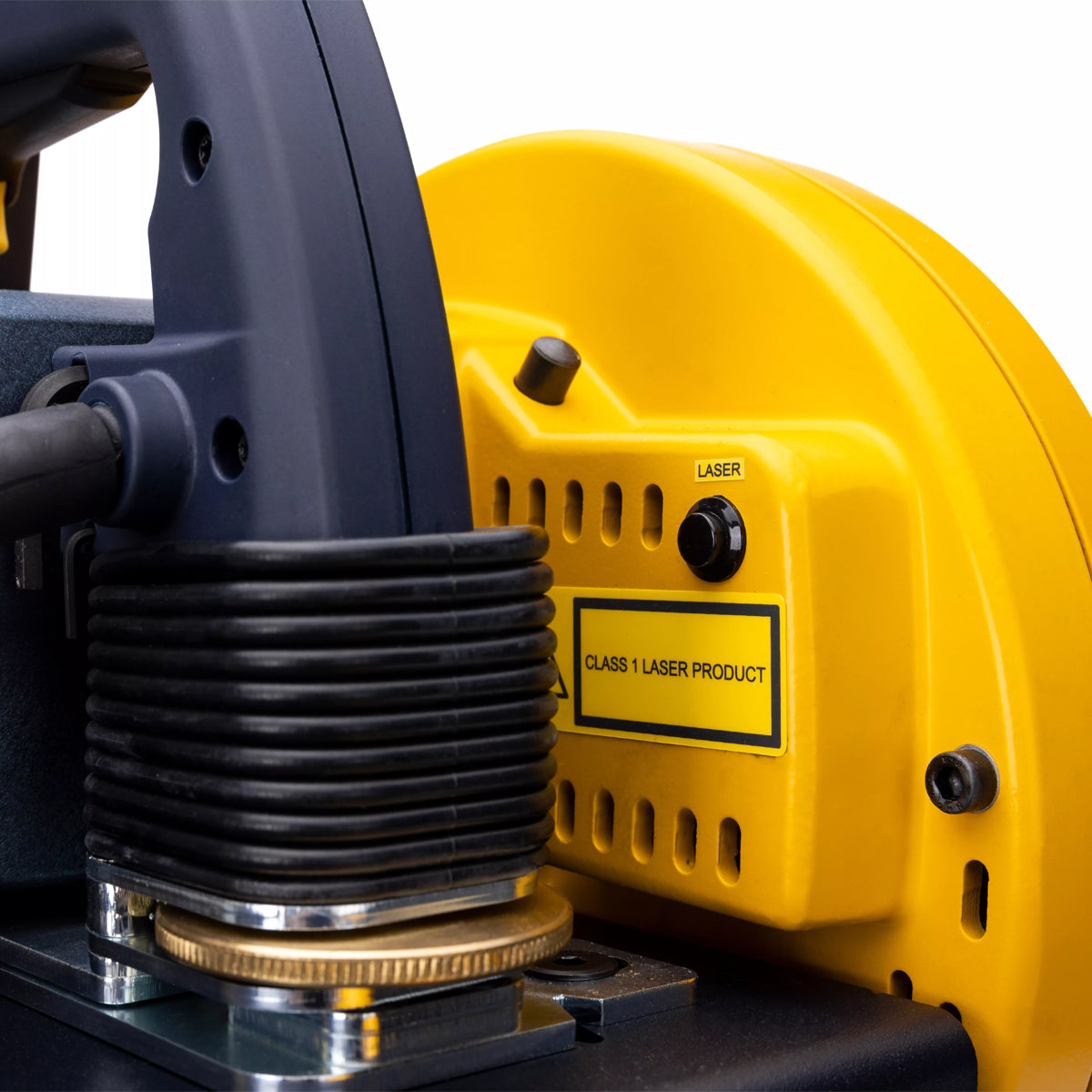

    • Laser for Cutting Point Definition: Yes
    • Overheat Control: Yes
    • No-Load Speed: I=1900 r/min / II=2885 r/min
    • Mounting Bore: 62mm (2.44”)

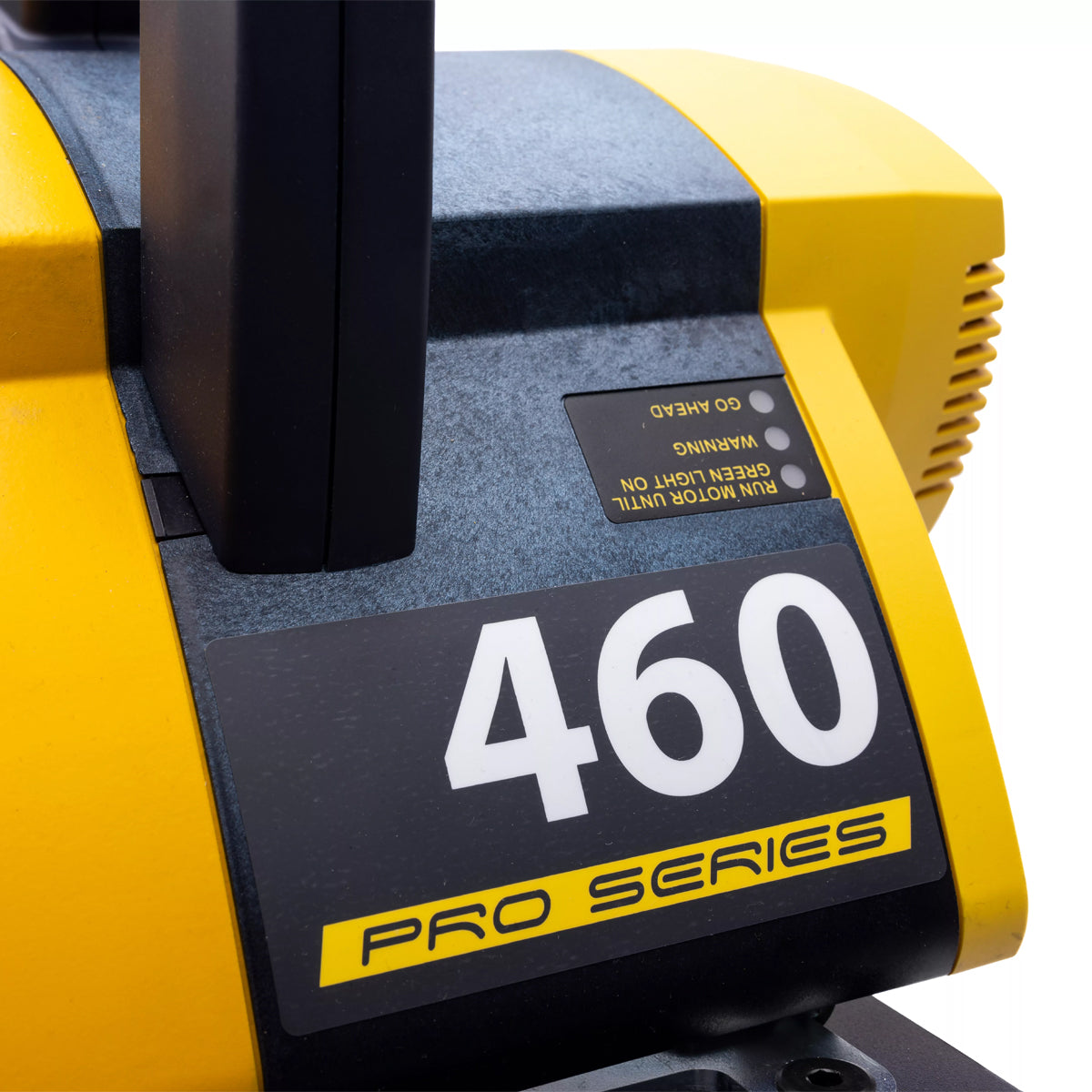

    • Electronical Unit: Blade speed preselection / automatic fuse / soft start / torque control
    • Read more
