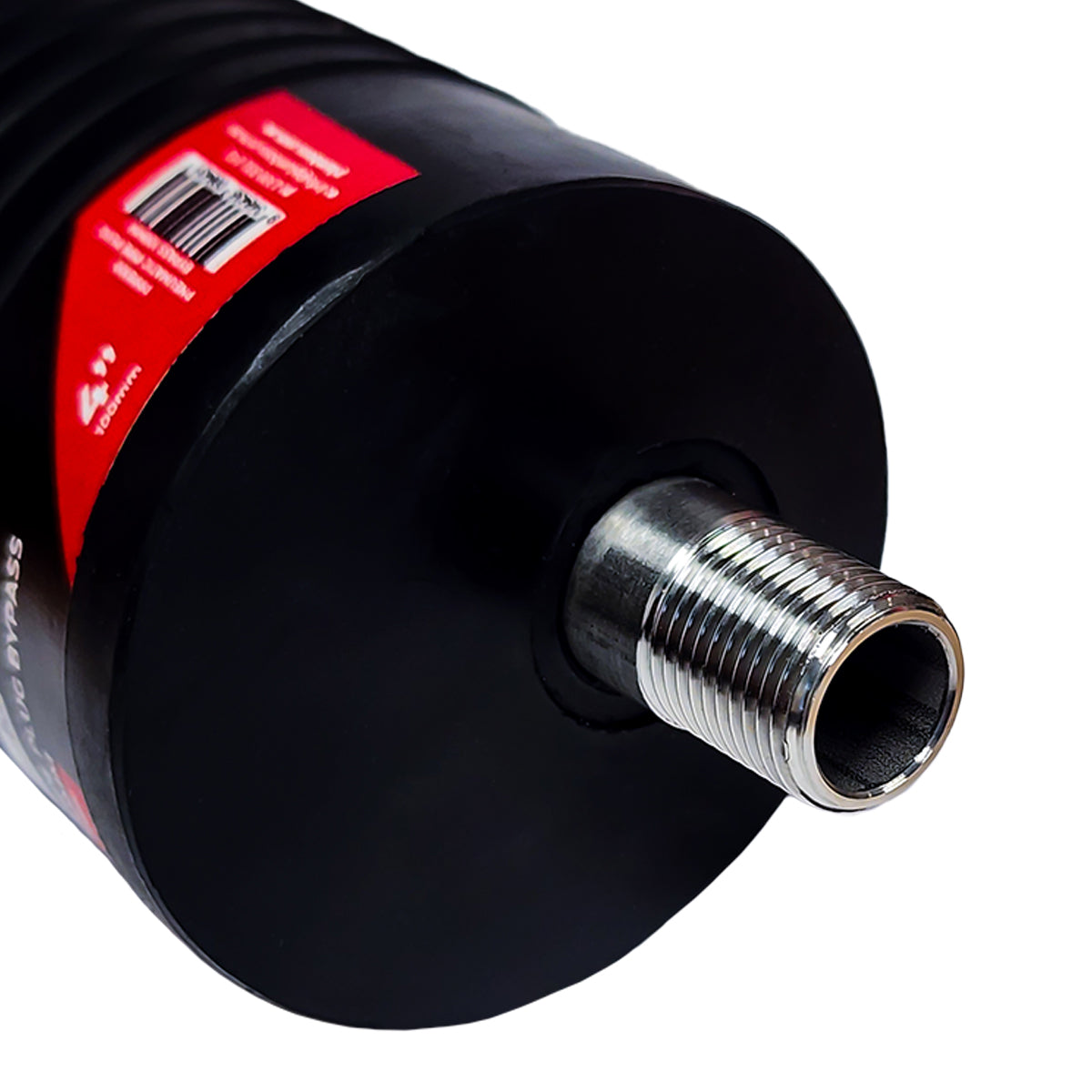

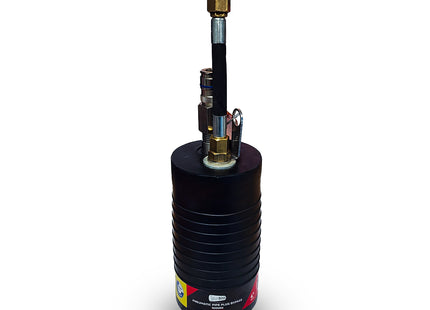

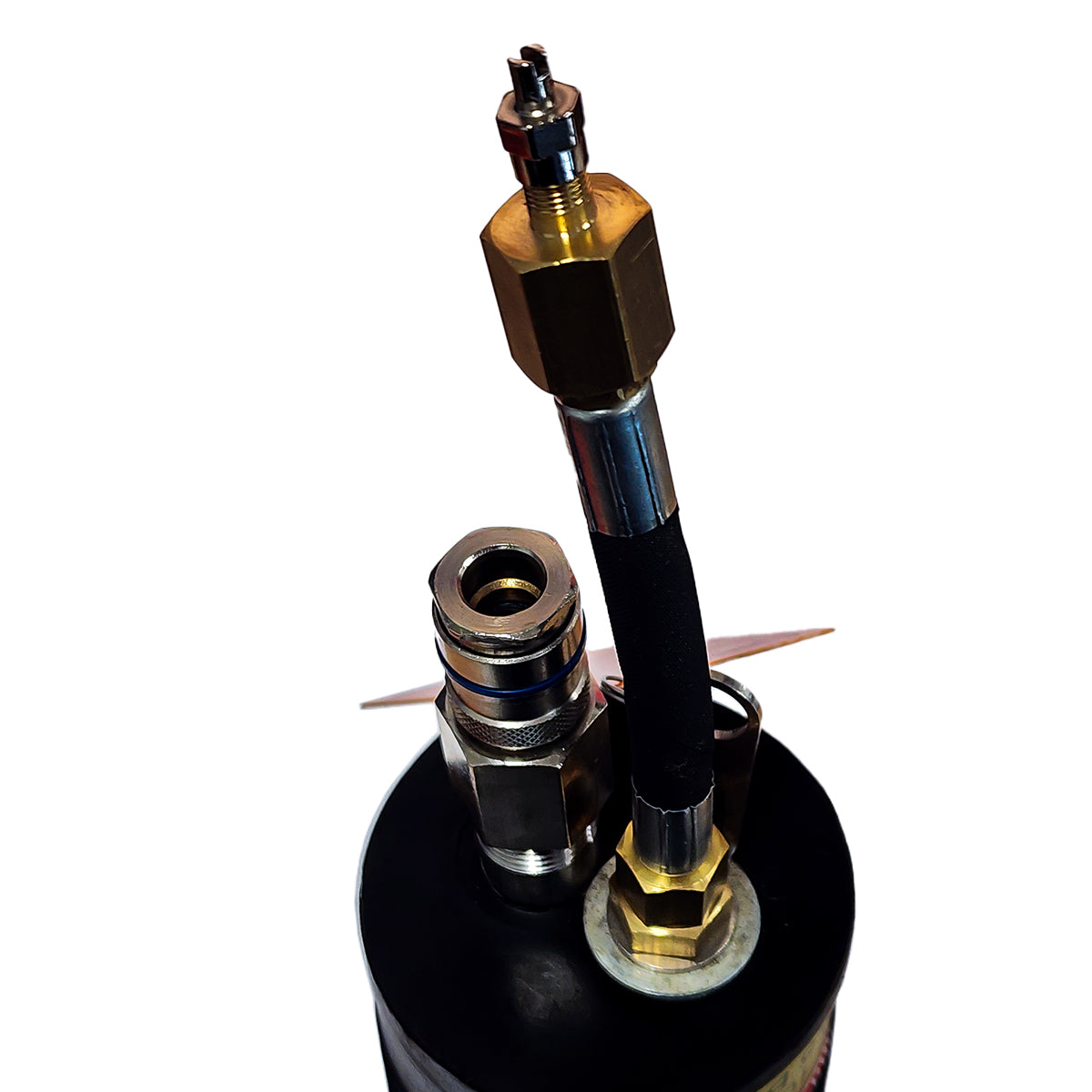

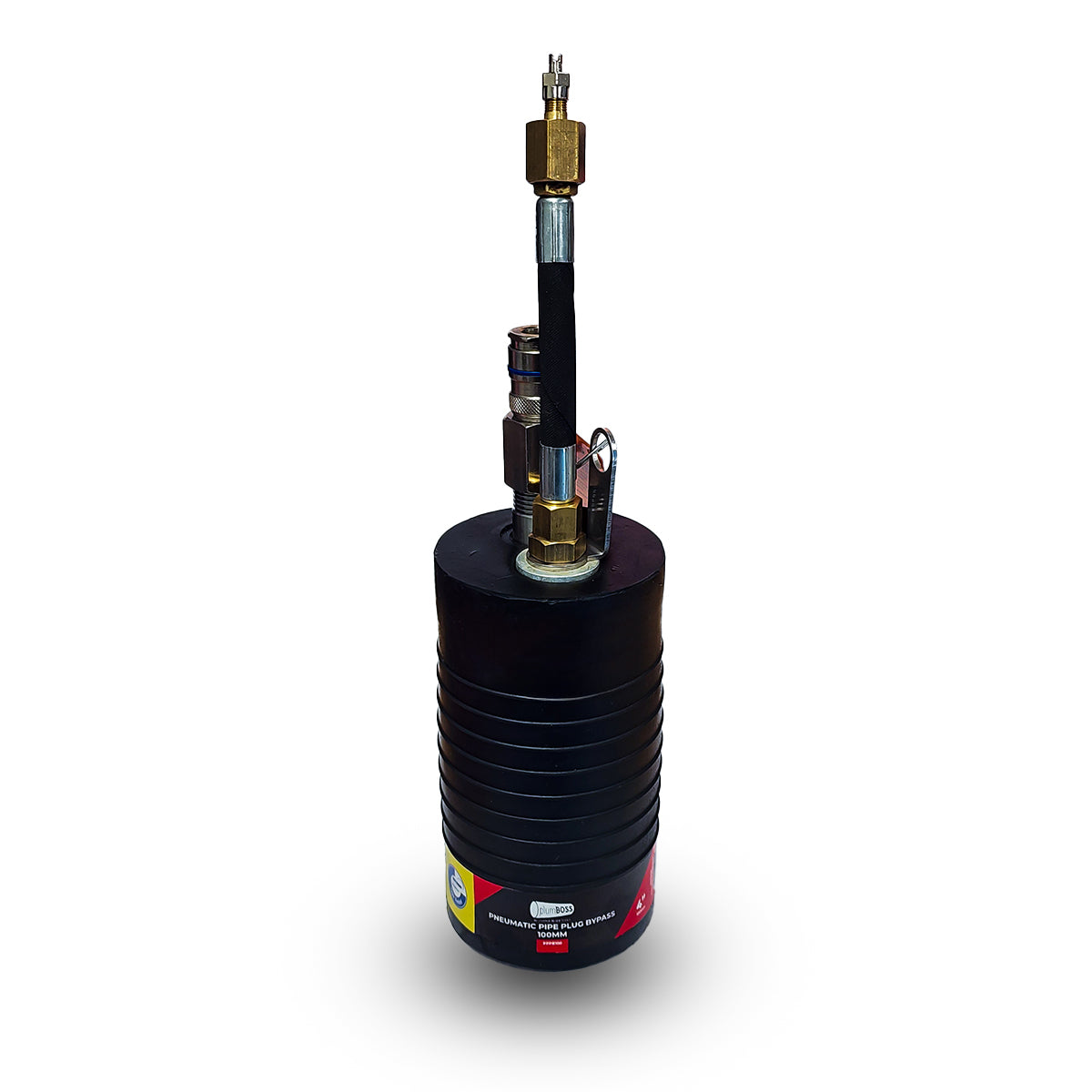

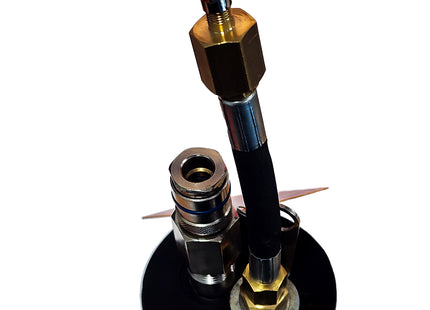

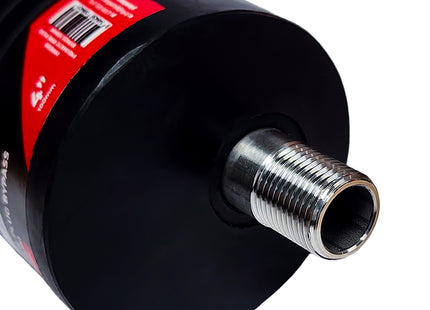

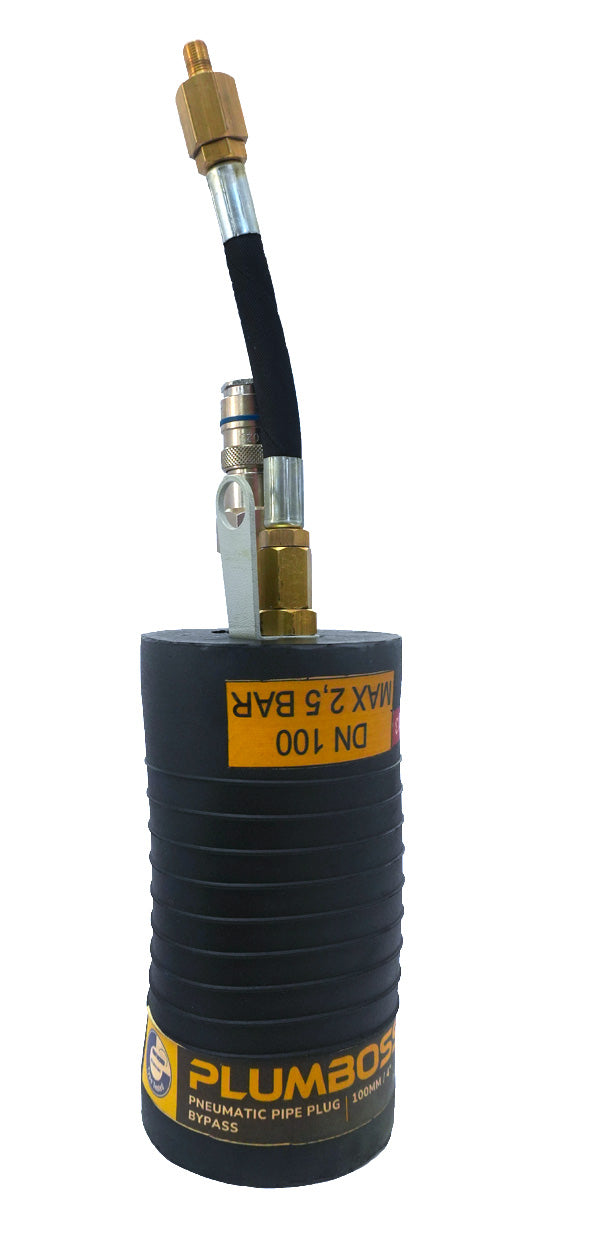

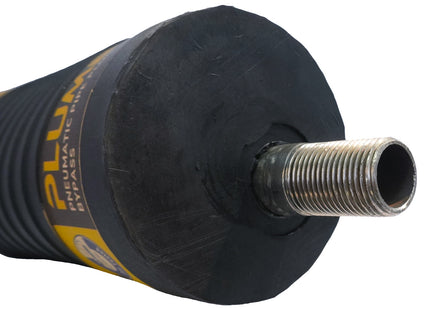

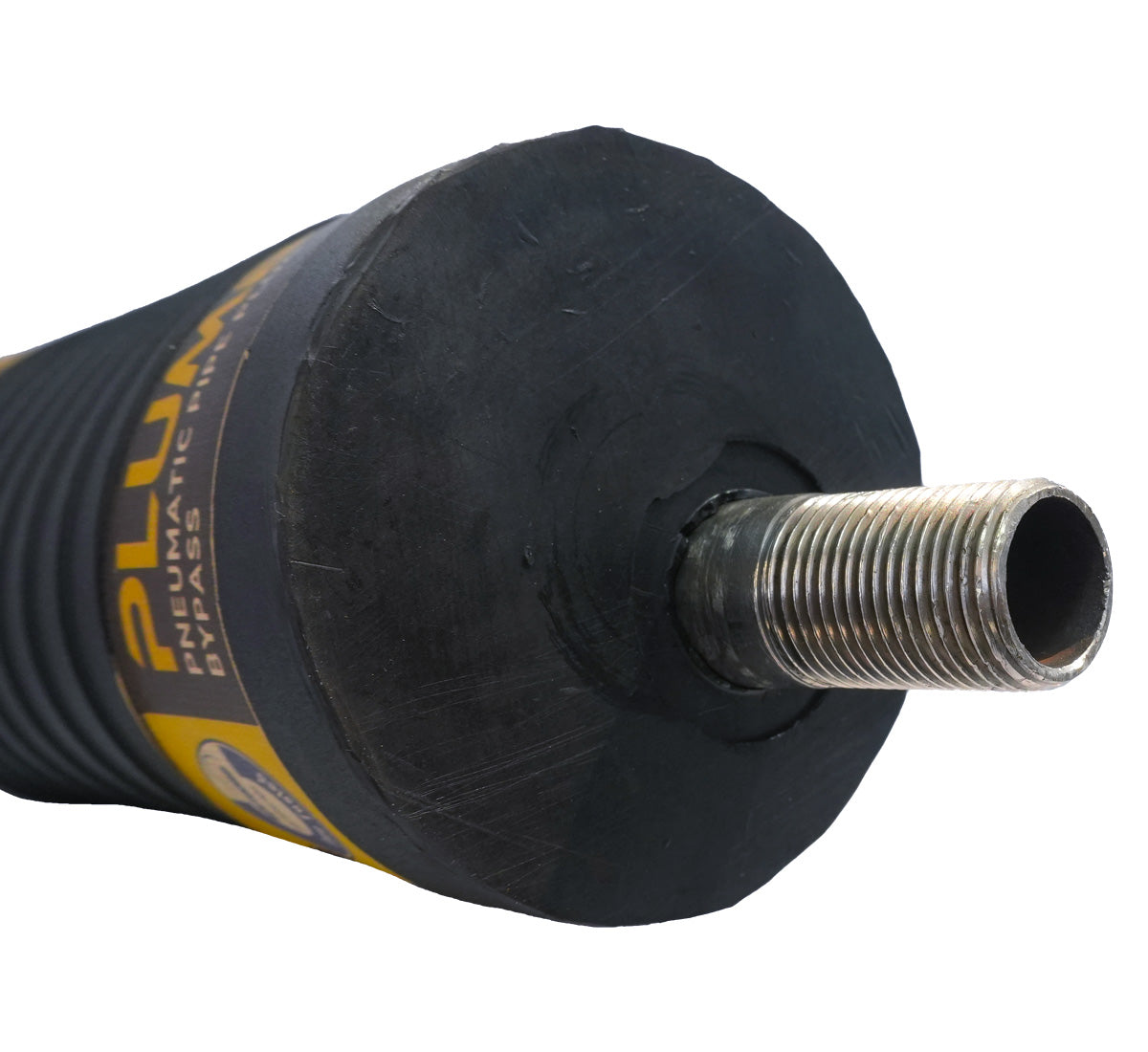

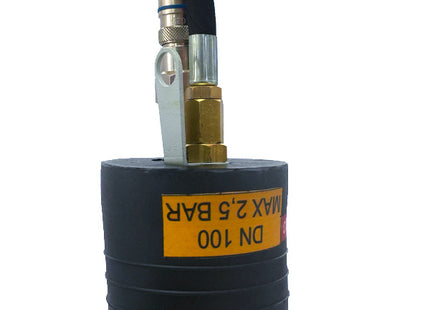

Pneumatic Pipe Plug Bypass Size 100mm | PPPB100

Pneumatic Pipe Plug Bypass Size 100mm | PPPB100 Description

SINGLE SIZE TEST BYPASS BALL

The Test Ball Plug is very easy to use in a wide variety of applications because of their "flexible" sealing design, they easily overcome some common problems like out of round pipe and pipe with slightly differing interior dimensions. Test Ball Plugs are recommended for use in piping constructed of ABS, cast iron, clay, concrete, copper or PVC.

PART NUMBER
SIZE USAGE RANGE
MAXIMUM
INFLATION
PRESSURE
[bar] / [psi]
MAXIMUM
BACK
PRESSURE
[bar] / [psi]
DEFLATED PLUG
PRODUCT
WEIGHT
[kg]
BYPASS
MIN. DIA.
[mm]
MAX. DIA.
[mm]
DIAMETER
[mm]
RUBBER
LENGTH
[mm]
OVERALL
LENGTH
[mm]
PPPB100 90 105 2.5 / 36 1 / 14.5 84 160 360 1.05 1/2 inch BSPT w/ CEJN Coupling
PPPB150 140 150 2.5 / 36 1 / 14.5 135 200 380 2.30 1 inch BSPT w/ Storz Coupling

For more sizes call us on: 1300 331 141

Product form

Code: PPPB100

or call us on:
P:
1300 331 141

Categories: plumBOSS, Pneumatic Test Plugs, Single Size Bypass Plugs, Test Plugs,
Icon for shopping_bagFind a Retailer

1000+ Distributors Australia wide! Call us on 1300 331 141 to find your nearest retailer.
