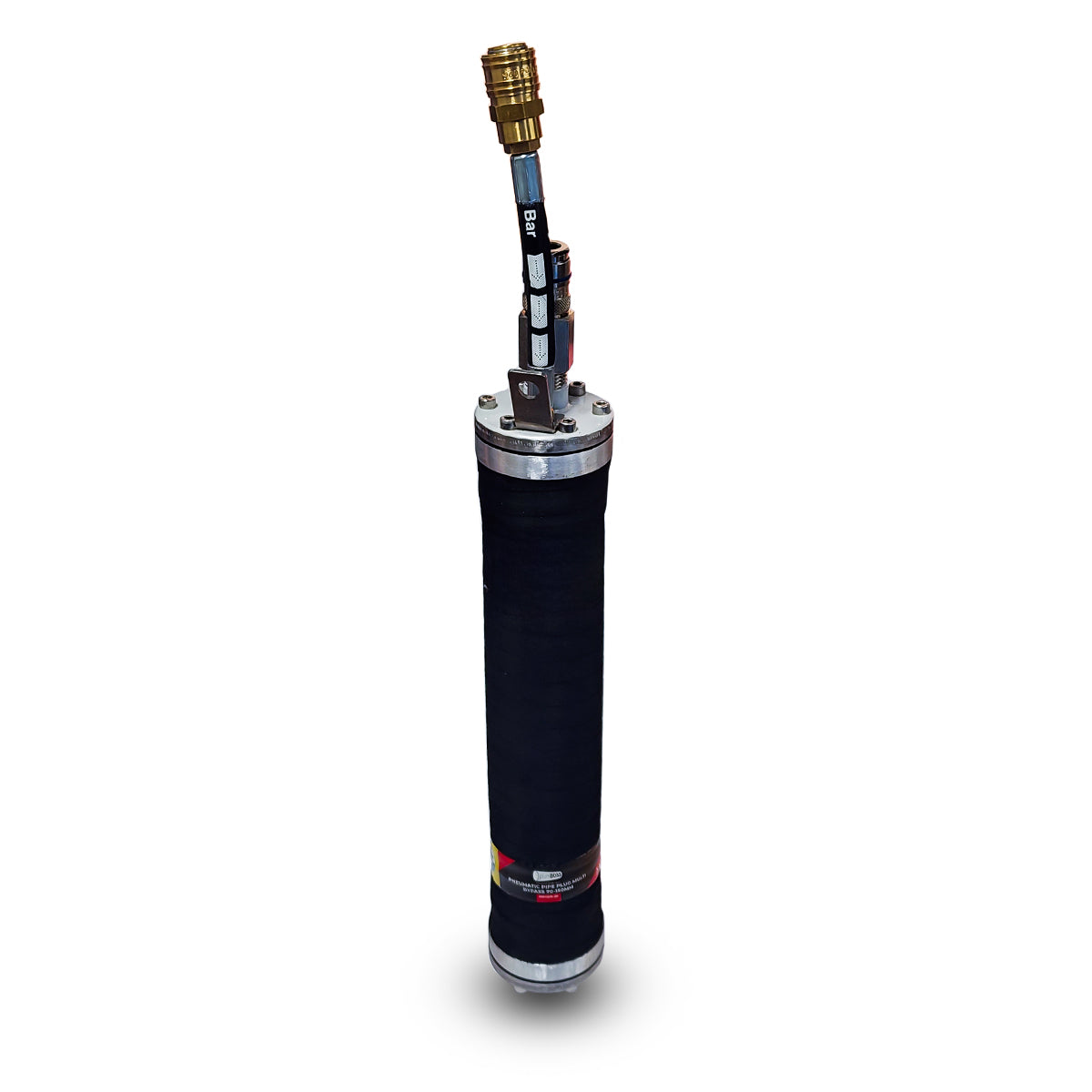

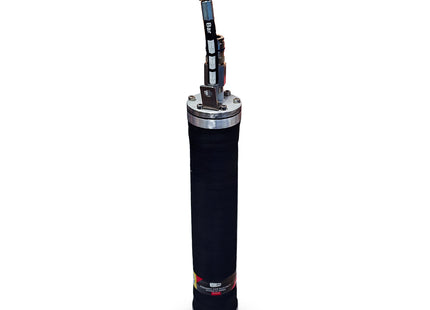

Pneumatic Pipe Plug Multi Size Bypass 70-150mm | PPPMB070-150

Pneumatic Pipe Plug Multi Size Bypass 70-150mm | PPPMB070-150 Description

MULTI SIZE TEST BYPASS BALL

The Test Ball Plug is very easy to use in a wide variety of applications because of their "flexible" sealing design, they easily overcome some common problems like out of round pipe and pipe with slightly differing interior dimensions. Test Ball Plugs are recommended for use in piping constructed of ABS, cast iron, clay, concrete, copper or PVC.

PART NUMBER
SIZE USAGE RANGE
MAXIMUM
INFLATION
PRESSURE
[bar] / [psi]
DEFLATED PLUG
PRODUCT
WEIGHT
[kg]
BYPASS
MIN. DIA.
[mm]
MAX. DIA.
[mm]
DIAMETER
[mm]
RUBBER
LENGTH
[mm]
OVERALL
LENGTH
[mm]
PPPMB070-150 70 150 2.5 / 36 67 340 530 1.45 1/2 inch BSPT w/ CEJN Coupling
PPPMB150-300 150 300 2.5 / 36 140 515 670 6.12 2 inch BSPT w/ Storz Coupling
PPPMB200-500 200 500 2.5 / 36 180 750 920 9.15 2 inch BSPT w/ Storz Coupling
PPPMB300-600 300 600 2.5 / 36 280 800 1050 13.00 2 x 2 inch BSPT w/ Storz Coupling

For more sizes call us on: 1300 331 141
