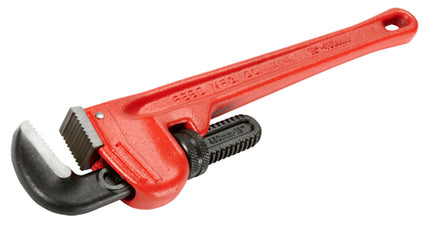

Reed D/Iron Pipe Wrench 24 inch (600mm) - RW24 | RD02170

Description

Reed Pipe Wrenches are the most popular pipe wrench style. High-tensile ductile iron handle and hardened, alloy steel parts are designed to withstand the heaviest demands. New production tooling for the hook jaws produces sharper teeth on the 18", 24", and 36" models. This change yields a still better grip for hard oil field pipe.

Catalog No Item Code Pipe Capacity Length Weight
Inches Nominal Actual Ø mm in mm lbs kg
RW8 02120 1/8-1 10 - 33 8 203 1.0 0.5
RW10 01230 1/8-1 1/2 10 - 48 10 254 1.9 0.9
RW12 01240 1/8 - 2 10 - 60 12 305 2.9 1.3
RW14 02150 1/4 - 2 14 - 63 14 356 3.6 1.6
RW18 02160 1/4 - 2 1/2 14 - 75 18 457 6.1 2.8
RW24 02170 1/4 - 3 14 - 90 24 610 9.9 4.5
RW36 02180 1/4 - 5 14 - 141 36 914 15.6 7.1
RW48 02190 1 1/2 - 6 48 - 168 48 1219 32.7 14.9
