Large Diamter Pipe Cutter 6-12in (160-335mm) - PLAS1 | RD04470

Description

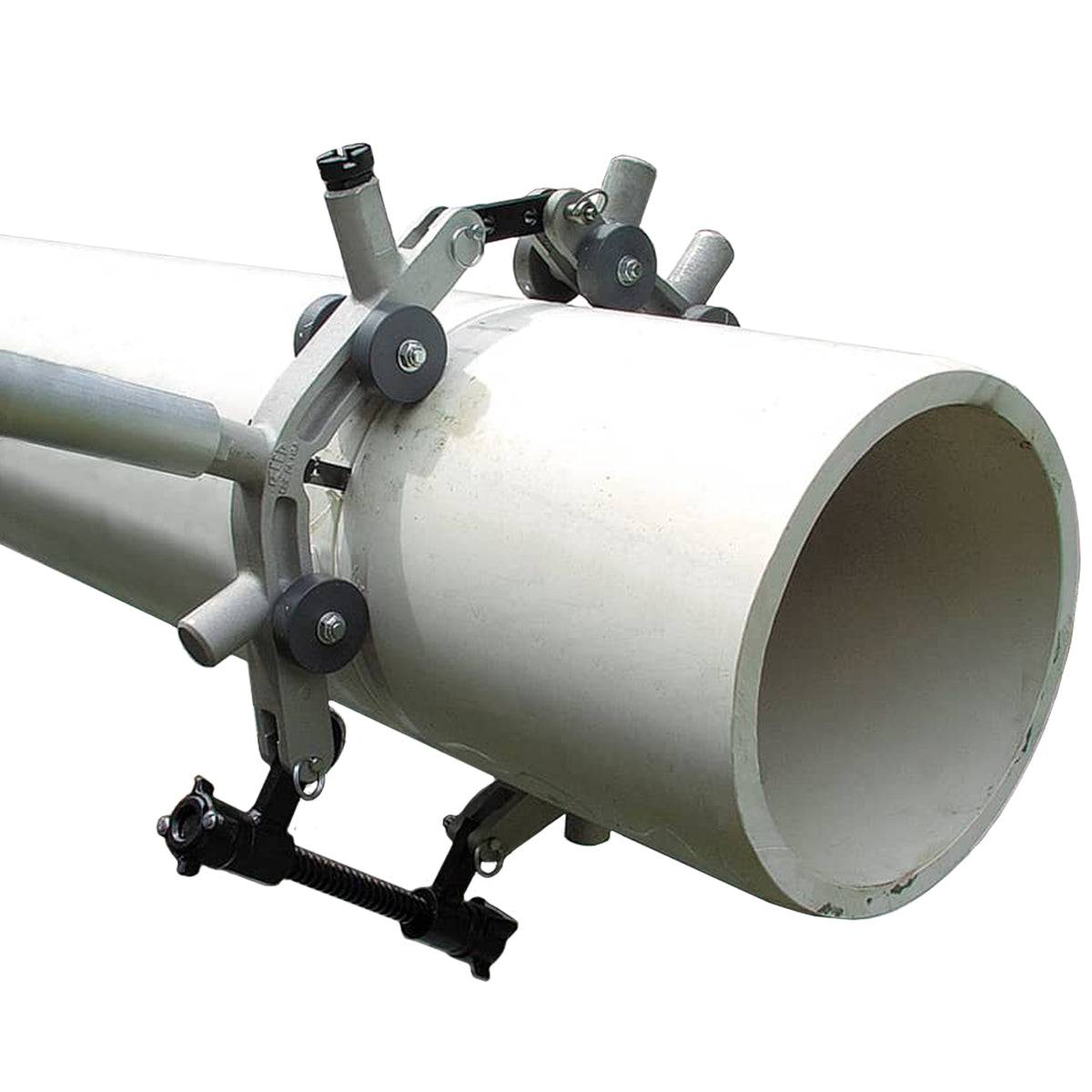

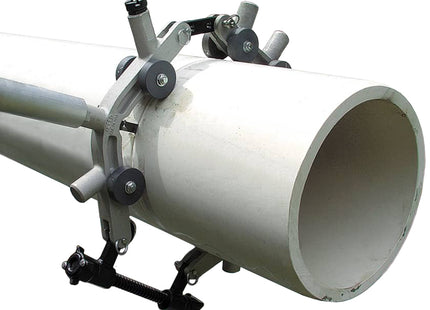

PLAS In-Line Rotary Cutters

PLAS In–Line Rotary Cutters are excellent for cutting 4" to 12" (110 – 335 mm) diameter PVC or PE pipe in–trench or above ground. Each PLAS rotary cutter needs just 6" to 8" (153 – 203 mm) clearance around the pipe. Outboard rollers keep the cutter aligned on pipe, ensuring a square cut every time. The tool's carbide–tipped blades for PVC are long–lasting and penetrate up to a 2" wall thickness*. Each PVC cutter also can produce, in–line with the cut, a 15° bevel on both sides of the cut. In addition, a hardened, tool steel blade to cut PE pipe is available separately. The curved blade drives chips out of the way, making PE cuts much easier.

*PLAS Cutter Specific Limitations for PE

  • up to 14" pipe (355 mm) - 2" (51 mm) wall thickness
  • up to 18" pipe (500 mm) - 1 1/2"(38 mm) wall thickness
  • up to 28" pipe (800 mm) - 1" (25.4 mm) wall thickness
CODE PIPE CAPACITY WEIGHT SECTIONS USED
INCHES - NOMINAL ACTUAL Ø mm kg
PB-PLAS0 4-8 110-240 17.7 A0, C0
PB-PLAS1 6-12 160-335 23.6 A, B, C
PB-PLAS2 14-18 355-500 25.9 B, C (2), D
PB-PLAS3 14-24 355-630 28.2 B, C (3), D
PB-PLAS4 14-28 355-800 30.9 B, C (4), D

Description

PLAS In-Line Rotary Cutters

PLAS In–Line Rotary Cutters are excellent for cutting 4" to 12" (110 – 335 mm) diameter PVC or PE pipe in–trench or above ground. Each PLAS rotary cutter needs just 6" to 8" (153 – 203 mm) clearance around the pipe. Outboard rollers keep the cutter aligned on pipe, ensuring a square cut every time. The tool's carbide–tipped blades for PVC are long–lasting and penetrate up to a 2" wall thickness*. Each PVC cutter also can produce, in–line with the cut, a 15° bevel on both sides of the cut. In addition, a hardened, tool steel blade to cut PE pipe is available separately. The curved blade drives chips out of the way, making PE cuts much easier.

*PLAS Cutter Specific Limitations for PE

  • up to 14" pipe (355 mm) - 2" (51 mm) wall thickness
  • up to 18" pipe (500 mm) - 1 1/2"(38 mm) wall thickness
  • up to 28" pipe (800 mm) - 1" (25.4 mm) wall thickness
CODE PIPE CAPACITY WEIGHT SECTIONS USED
INCHES - NOMINAL ACTUAL Ø mm kg
PB-PLAS0 4-8 110-240 17.7 A0, C0
PB-PLAS1 6-12 160-335 23.6 A, B, C
PB-PLAS2 14-18 355-500 25.9 B, C (2), D
PB-PLAS3 14-24 355-630 28.2 B, C (3), D
PB-PLAS4 14-28 355-800 30.9 B, C (4), D
