Low Clearance Rotary Cutter 14-16in - LCRC16 | RD03317

Low Clearance Rotary Cutter 14-16in - LCRC16 | RD03317 Description

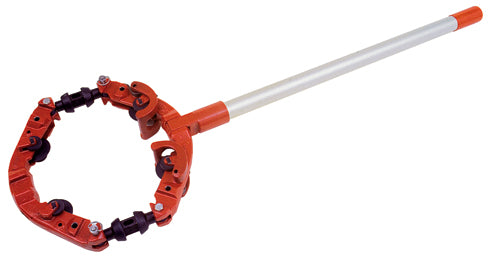

Cut pipe quickly and with minimal digging using Reed Low Clearance Rotary Cutters. The low profile design of the LCRC models needs only 5 inch (127 mm) clearance for up to 16 inch pipe diameter. Safe, clean, straight cuts are easy with these manual-operated cutters. They cold cut large diameter steel, most stainless steel, ductile, and cast iron pipe in close quarters. LCRC cutters are supplied with a slip-on handle that is used to turn and tighten the cutter. With good leverage from the tool's long handle, pipe snaps off squarely before the cutter wheels penetrate halfway through the pipe. Provides a square cut and can be used in close quarters anywhere - in the ditch, underwater, in noise-free zones, over head, in racks of pipes, etc. With general maintenance and cutter wheel replacement, Reed's Low Clearance Rotary Cutters last for decades.

Catalogue No. Item Code Pipe Capacity Cutter Wheel Length Weight
Steel in-nom. Cast & Ductile Iron in-nom. actual O.D. mm in mm lbs kg
LCRC4I 03306   2-4 60-125 RCI8-30 19 483 9.5 4.3
LCRC4S 03307 2-4   60-125 RCS8-36 19 483 9.5 4.3
LCRC8I 03308   6-8 159-246 RCI8-30 58 1473 41 18.6
LCRC8S 03309 6-8   159-246 RCS8-36 58 1473 41 18.6
LCRC8X 03311 6-8 Heavy
Wall Steel, Stainless Steel
  159-246 RCX 58 1473 41 22.7
LCRC12I 03312   10-12 266-358 RCI8-30 61 1549 50 22.7
LCRC12S 03313 10-14   266-358 RCS8-36 61 1549 50 22.7
LCRC12X 03314 10-14 Heavy
Wall Steel, Stainless Steel
  266-358 RCX 61 1549 50 27.3
LCRC16I 03316   14-16 368-462 RCI8-30 66 1664 60 27.3
LCRC16S 03317 16-18   368-462 RCS8-36 66 1664 60 27.3
LCRC16X 03318 16-18 Heavy
Wall Steel, Stainless Steel
  368-462 RCX 66 1664 60 27.3
SPECIAL ORDER
Product form

Code: RD03317

or call us on:
P:
1300 331 141

Categories: Low Clearance Rotary Cutter, Manual Pipe and Tube Cutters, Pipe and Tube Cutting, plumBOSS, Steel Pipe,
Icon for shopping_bagFind a Retailer

1000+ Distributors Australia wide! Call us on 1300 331 141 to find your nearest retailer.

Downloads:
Download Low Clearance Rotary Cutter 14-16in - LCRC16 | RD03317 User Manual
