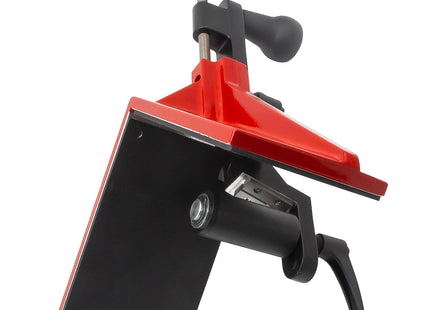

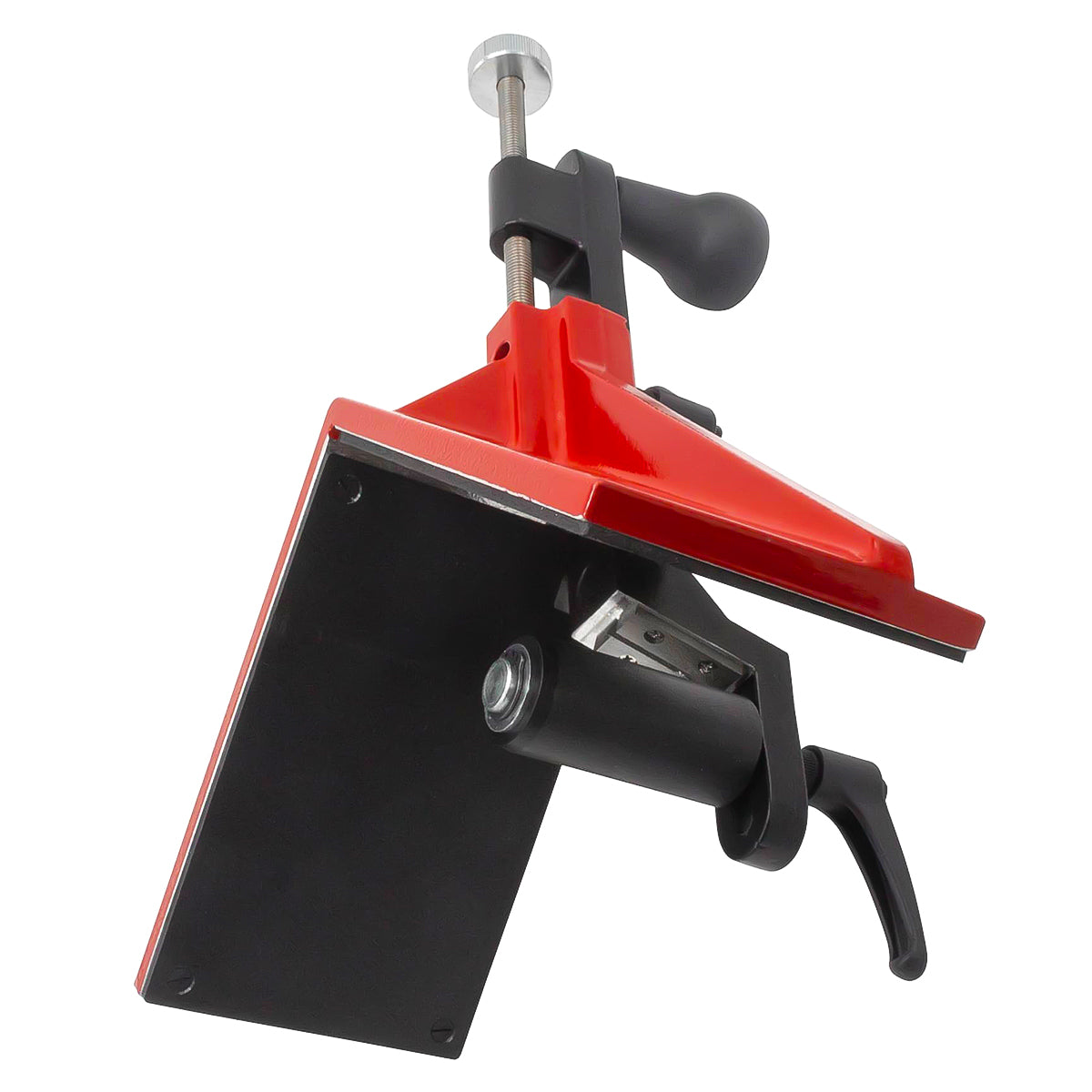

Reed Plastic Pipe Beveller 1 1/2 -12in - BT2 | RD04398

Description

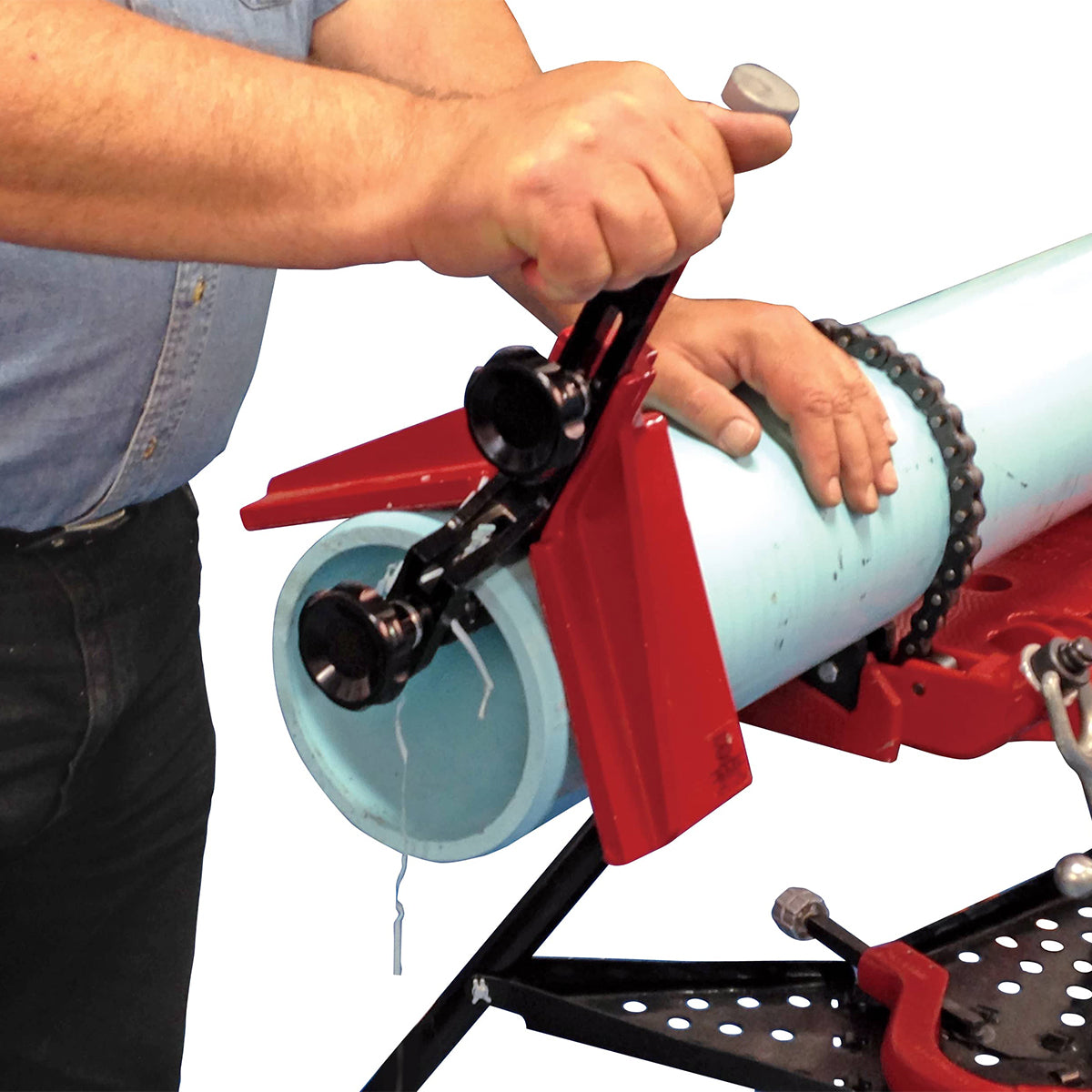

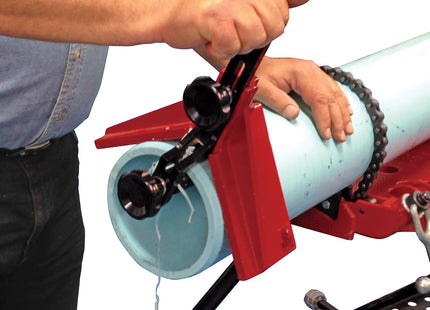

With a strong aluminum alloy frame, effective roller locking, and good tool life, a Beveler produces a smooth 15° bevel on all types of plastic pipe, including gasketed PVC and C900 PVC in about one minute. Depending on wall thickness, the bevel can be up to 1 1/2" long. Beveler is easily adjusted for different pipe sizes and thicknesses, with no part changes. Bevel blade can be sharpened or replaced.

NOTE if pipe is not stationary, a Reed pipe vise is recommended.

Code Item No. Pipe Capacity Weight
Inches Nominal Actual Ø mm lbs kg
BT1 04395 1 1/2 - 8 40 - 200 3.0 1.4
BT2 04398 1 1/2 - 12 40 - 300 6.1 2.8
Product form

SKU: RD04398

or call us on:
P:
1300 331 141

Categories: Pipe Bevellers, Pipe Working Tools, REED,
Key Features
  • Pipe Beveler only needs a few turns around the pipe to make the 15° smooth bevel.
  • Strong, reinforced aluminum frame for durability.
  • Adjusts to bevel multiple sizes with one tool.
Downloads:
Download Reed Plastic Pipe Beveller 1 1/2 -12in - BT2 | RD04398 User Manual

Description

With a strong aluminum alloy frame, effective roller locking, and good tool life, a Beveler produces a smooth 15° bevel on all types of plastic pipe, including gasketed PVC and C900 PVC in about one minute. Depending on wall thickness, the bevel can be up to 1 1/2" long. Beveler is easily adjusted for different pipe sizes and thicknesses, with no part changes. Bevel blade can be sharpened or replaced.

NOTE if pipe is not stationary, a Reed pipe vise is recommended.

Code Item No. Pipe Capacity Weight
Inches Nominal Actual Ø mm lbs kg
BT1 04395 1 1/2 - 8 40 - 200 3.0 1.4
BT2 04398 1 1/2 - 12 40 - 300 6.1 2.8
