Categories: Powered Branch Forming, Stainless Steel Collaring Machine, T-DRILL, Tube Working Tools,

T-65 SS machine for collars OD 17-54mm | TD5330808

Product form

STOCK CODE: TD5330808

or call us on:
P: 1300 331 141


Icon for shopping_bagFind a Retailer

1000+ Distributors Australia wide! Call us on 1300 331 141 to find your nearest retailer.

Key Features
  • Universal clamping system for run tubes 3/4-4 inch O.D.
  • Easy pilot hole adjustment
  • Simple and quick tool change
  • Ergonomic design for minimized workload
  • The T-DRILL collaring heads with stepless adjustment ensures exactly precise collar sizes

Description

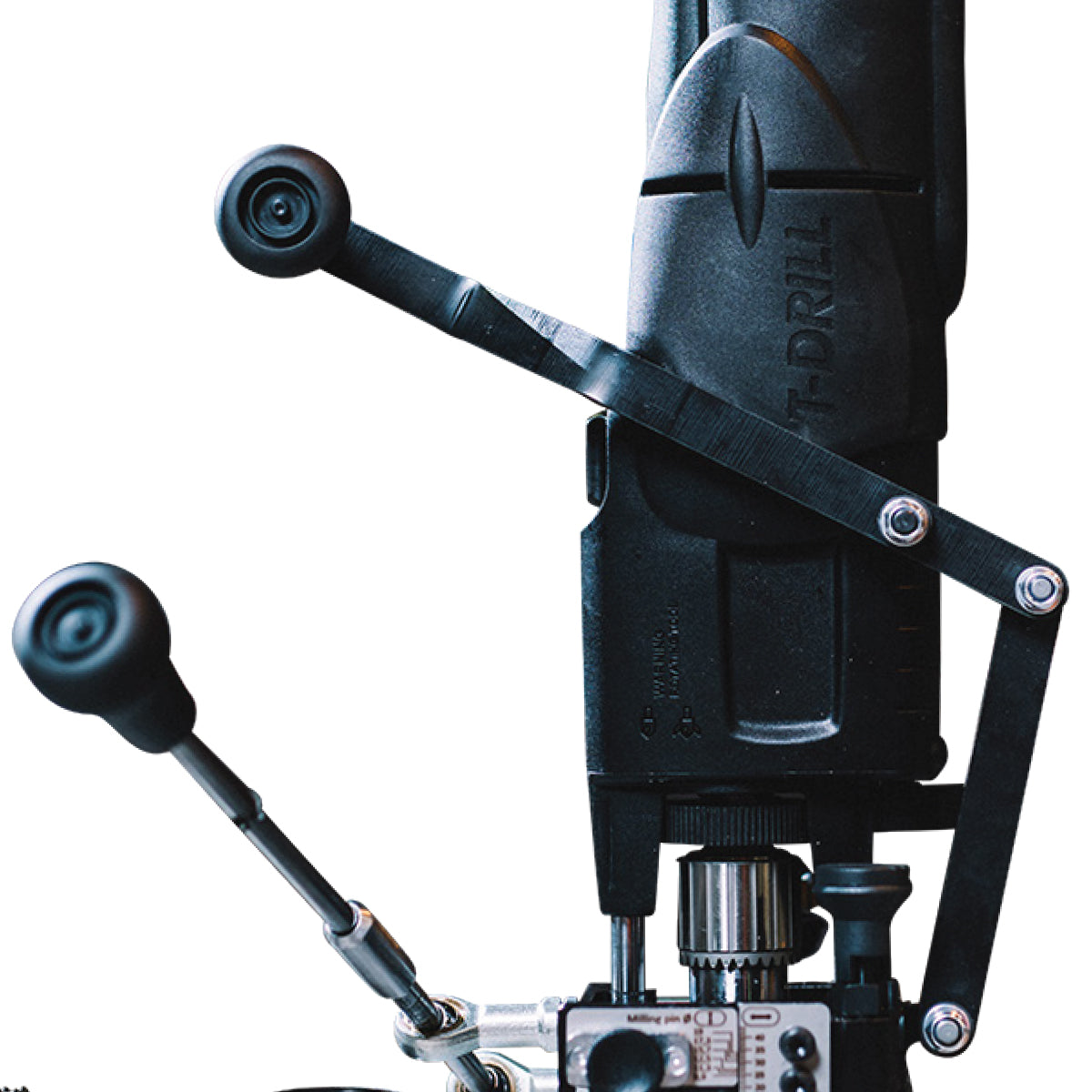

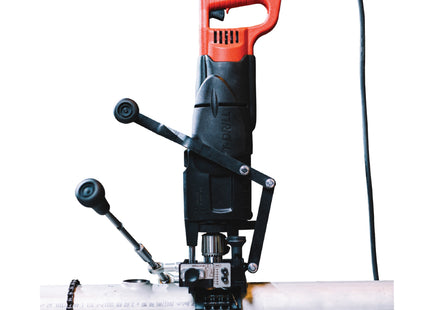

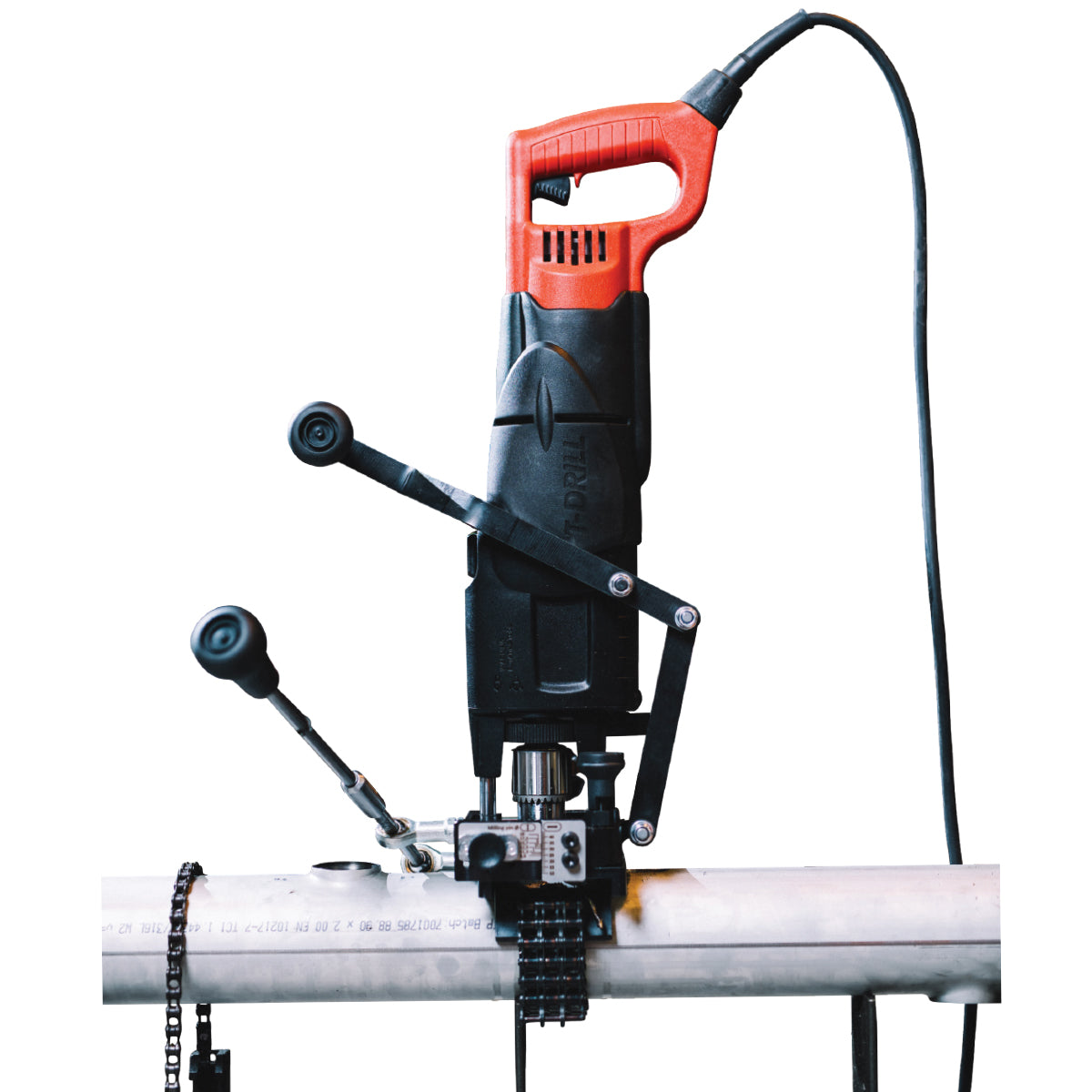

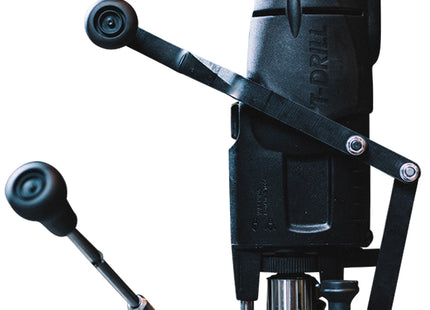

The powerful T-DRILL T-65 SS is an ideal portable solution for making tee joints of 3/8-2 inch O.D. in main run tubes up to 4 inch O.D. in just a couple of minutes. While giving comparable quality to commercial tee fittings, the profit will increase since the T-65 SS eliminates cutting of pipe, two welded joints and the fitting cost.

If tube polishing is required at the welding points, the T-65 SS also reduces that, as well as any inspection costs. The branch pipe can be connected to a formed outlet either by orbital welding or by manual welding.

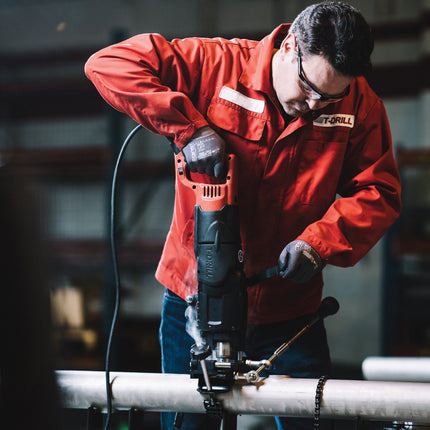

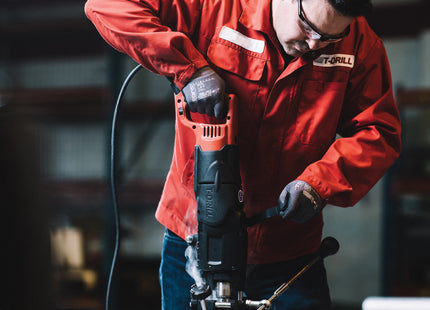

The ergonomically designed machine is easy and convenient to use, as it has two handles; the upper one for drilling through and the other one for pilot hole side movement. This minimizes the amount of force needed to perform and makes the collaring process highly effortless for the user.

The T-65 SS is an excellent solution to be used both in construction and renovation project, as well as in the demanding field conditions in maintenance, repair work and the process industry.

Branch Puller / Branch Pulling Device


Specifications

  • Collar sizes: 17–54 mm
  • 3/8″ – 2 1/8": 3/8″ – 2 1/8"
  • Run tube sizes: 26.9–114.3 (300) mm
  • 3/4″ – 4″ O.D.: 3/4″ – 4″ O.D.
  • Pipe material: Stainless steel
  • Steel: Steel
