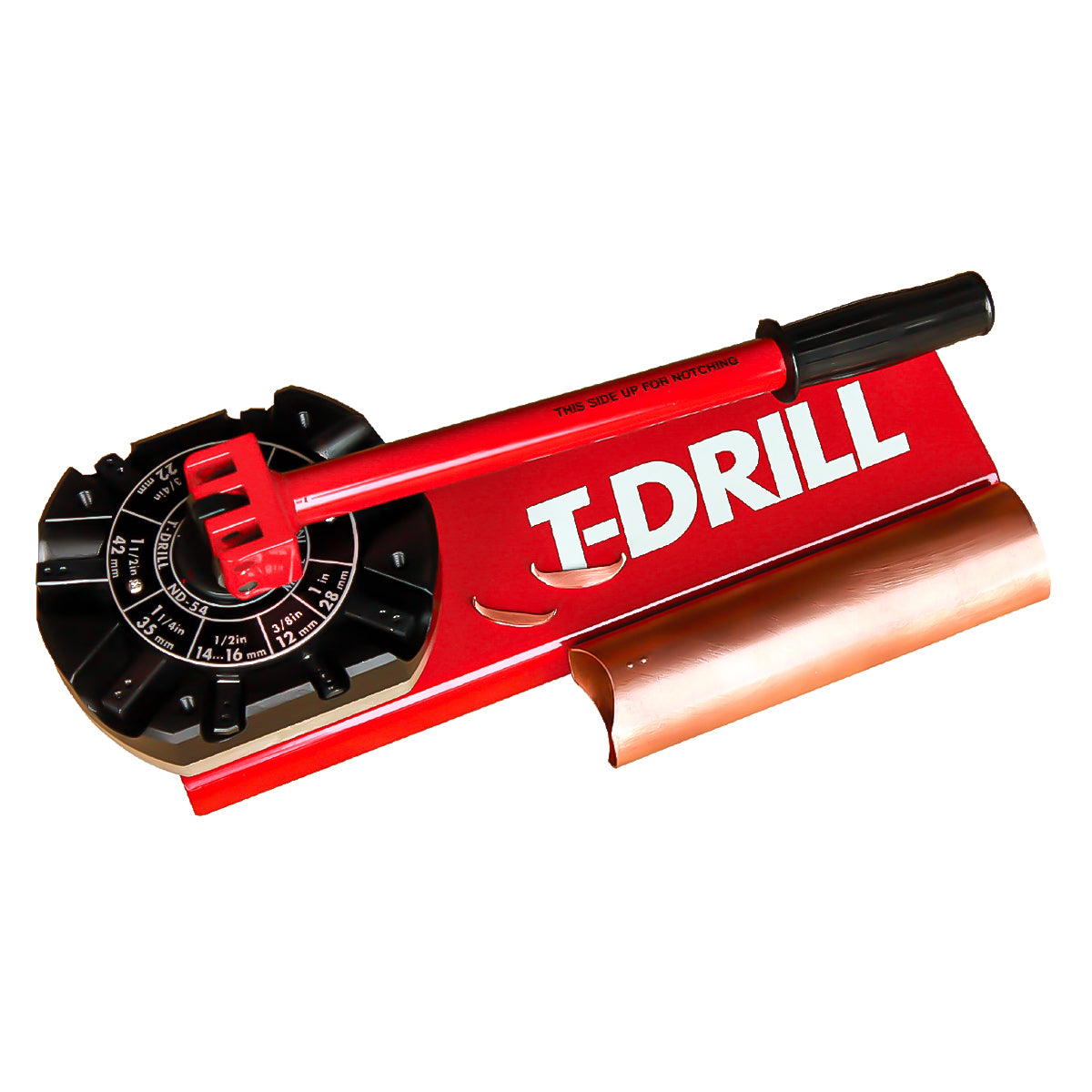

T-Drill Tube End Notcher ND-54 | TD5090294

T-Drill Tube End Notcher ND-54 | TD5090294 Description

  • ND-54 Tube End Notcher is used for cutting and dimpling the branched tube ends to enable the best possible flow characteristics.
  • The ND-54 is a natural complement to the T-DRILL tee forming system. It cuts a half-moon shaped coupon from each side of the branch tube to provide for full flow and simultaneously presses in a dimple that rests on the rim of the tee and acts as a depth stop. A second dimple 6 mm higher acts as a point of inspection. The result is an inspectable brazed joint with the best possible flow characteristics.
  • For branch tube sizes 12, 14-16, 18, 22, 28, 35, 42 and 54 mm and for corresponding inch sizes: ½, ¾, 1, 1 ¼, 1 ½, 2 inch.
  • SPECIAL ORDER

  • Branch Puller / Branch Pulling Device

    Product form

    Code: TD5090294

    or call us on:
    P:
    1300 331 141


    Categories: Powered Branch Forming, T-DRILL, Tube End Notcher, Tube Working Tools,
    Icon for shopping_bagFind a Retailer

    1000+ Distributors Australia wide! Call us on 1300 331 141 to find your nearest retailer.

    T-Drill Tube End Notcher ND-54 | TD5090294 Description

  • ND-54 Tube End Notcher is used for cutting and dimpling the branched tube ends to enable the best possible flow characteristics.
  • The ND-54 is a natural complement to the T-DRILL tee forming system. It cuts a half-moon shaped coupon from each side of the branch tube to provide for full flow and simultaneously presses in a dimple that rests on the rim of the tee and acts as a depth stop. A second dimple 6 mm higher acts as a point of inspection. The result is an inspectable brazed joint with the best possible flow characteristics.
  • For branch tube sizes 12, 14-16, 18, 22, 28, 35, 42 and 54 mm and for corresponding inch sizes: ½, ¾, 1, 1 ¼, 1 ½, 2 inch.
  • SPECIAL ORDER

  • Branch Puller / Branch Pulling Device
