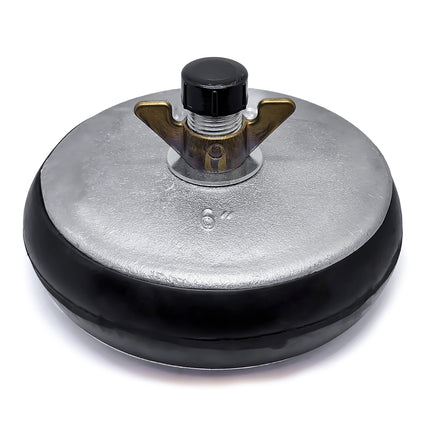

plumBOSS Test Plug Aluminium 6 inch (150mm) | 6AL

Description

ALUMINIUM TEST PLUGS - Test Plug Aluminium 6" (150mm)

For sealing when testing pipe lines from 1 1/2in up to 48in


PRODUCT CODE DESCRIPTION MIN/MAX (mm) BSP OUTLET SIZE
1½AL TEST PLUG ALUMINIUM 1 ½in (38mm) 36 - 48 ½in
2AL TEST PLUG ALUMINIUM 2in (50mm) 49 - 60 ½in
2½AL TEST PLUG ALUMINIUM 2 ½in (65mm) 61 - 75 ½in
3AL TEST PLUG ALUMINIUM 3in (75mm) 73 - 85 ½in
4AL TEST PLUG ALUMINIUM 4in (100mm) 94 - 110 ½in
6AL TEST PLUG ALUMINIUM 6in (150mm) 146 - 163 ½in
21AL TEST PLUG ALUMINIUM 21in (525mm) 520 - 555 2in
24AL TEST PLUG ALUMINIUM 24in (600mm) 590 - 630 2in


Operating Pressure Sizes
This is a guide to the maximum back pressure for the different types and sizes of test plugs.
These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.

½” (12.5mm) to (30mm)

30 psi

1½” (40mm) to (300mm)

7 psi

13” (325mm) to (1200mm)

5 psi

Over 40” (1200mm)

3 psi

Product form

STOCK CODE: 6AL

or call us on:
P: 1300 331 141

Icon for shopping_bagFind a Retailer

1000+ Distributors Australia wide! Call us on 1300 331 141 to find your nearest retailer.



Description

ALUMINIUM TEST PLUGS - Test Plug Aluminium 6" (150mm)

For sealing when testing pipe lines from 1 1/2in up to 48in


PRODUCT CODE DESCRIPTION MIN/MAX (mm) BSP OUTLET SIZE
1½AL TEST PLUG ALUMINIUM 1 ½in (38mm) 36 - 48 ½in
2AL TEST PLUG ALUMINIUM 2in (50mm) 49 - 60 ½in
2½AL TEST PLUG ALUMINIUM 2 ½in (65mm) 61 - 75 ½in
3AL TEST PLUG ALUMINIUM 3in (75mm) 73 - 85 ½in
4AL TEST PLUG ALUMINIUM 4in (100mm) 94 - 110 ½in
6AL TEST PLUG ALUMINIUM 6in (150mm) 146 - 163 ½in
21AL TEST PLUG ALUMINIUM 21in (525mm) 520 - 555 2in
24AL TEST PLUG ALUMINIUM 24in (600mm) 590 - 630 2in


Operating Pressure Sizes
This is a guide to the maximum back pressure for the different types and sizes of test plugs.
These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.

½” (12.5mm) to (30mm)

30 psi

1½” (40mm) to (300mm)

7 psi

13” (325mm) to (1200mm)

5 psi

Over 40” (1200mm)

3 psi
