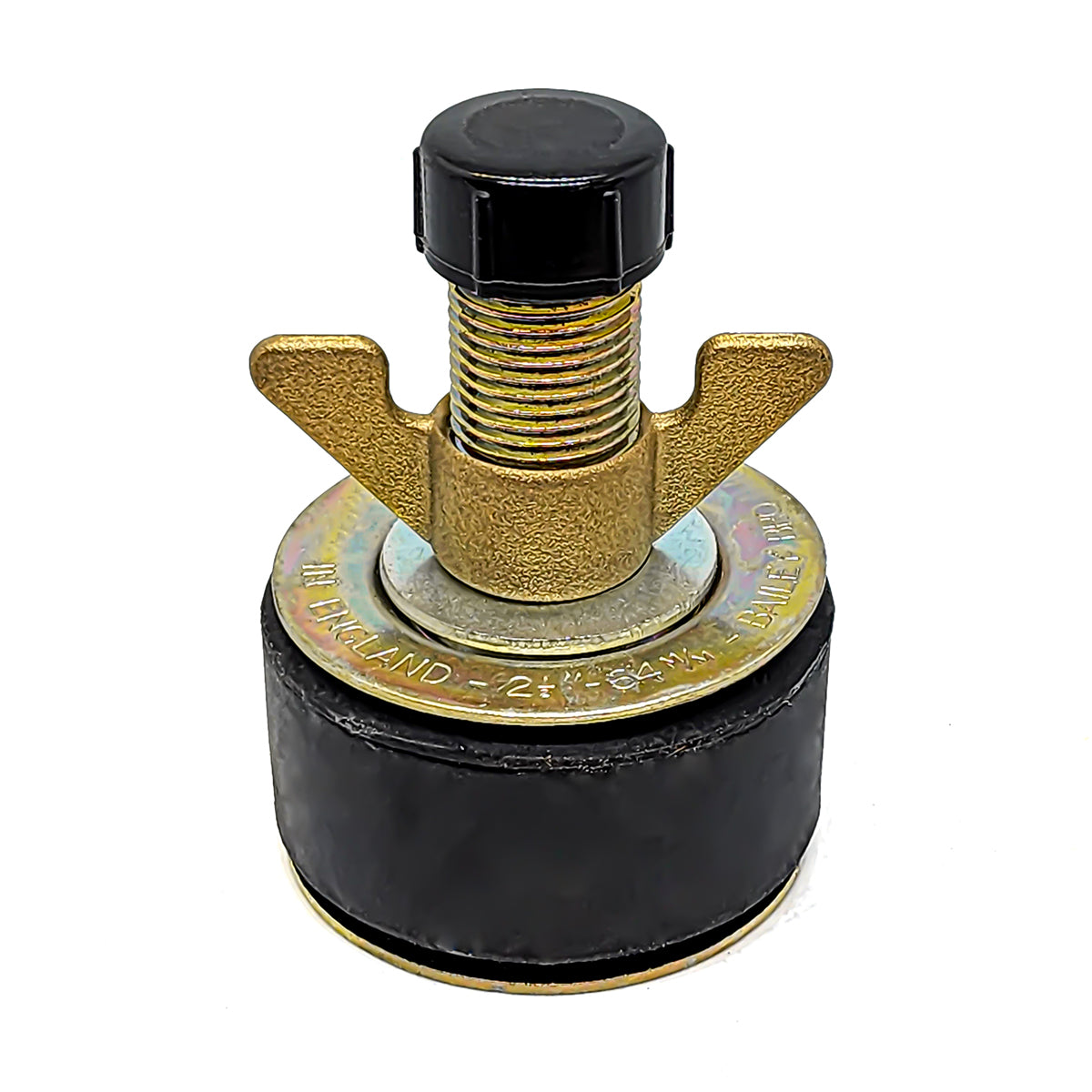

plumBOSS Test Plug Pressed Steel 2 1/2PS inch (65mm) | 2.5PS

Description

PRESSED STEEL TEST PLUGS - Pipe Plug Single Seal 2 1/2" (65mm)

Used as Pipe Stops, Pressure Testing and for Pipe Purging


Product Code Description Min/Max - (mm) BSP Outlet Size
1 1/2PS TEST PLUG PRESSED STEEL 1 1/2in (38mm) 36-48 1½in
2PS TEST PLUG PRESSED STEEL 2in (50mm) 49-60 ½in
2 1/2ps TEST PLUG PRESSED STEEL 2 1/2in (65mm) 61-75 ½in
3PS TEST PLUG PRESSED STEEL 3in (75mm) 73-85 ½in
4PS TEST PLUG PRESSED STEEL 4in (100mm) 94-110 ½in
5PS TEST PLUG PRESSED STEEL 5in (125mm) 121-138 ½in
6PS TEST PLUG PRESSED STEEL 6in (150mm) 146-163 ½in
7PS TEST PLUG PRESSED STEEL 7in (175mm) 170 - 195 1in
8PS TEST PLUG PRESSED STEEL 8in (200mm) 191-211 1in
9PS TEST PLUG PRESSED STEEL 9in (225mm) 216-235 1in
10PS TEST PLUG PRESSED STEEL 10in (250mm) 244-260 1in
12PS TEST PLUG PRESSED STEEL 12in (300mm) 296-314 1in
15PS TEST PLUG PRESSED STEEL 15in (375mm) 365-400 1in
18PS TEST PLUG PRESSED STEEL 18in (450mm) 440-475 1in


Operating Pressure Sizes
This is a guide to the maximum back pressure for the different types and sizes of test plugs.
These pressures will vary depending on cleanliness and condition of pipe bore and ambient temperature.

½” (12.5mm) to (30mm)

30 psi

1½” (40mm) to (300mm)

7 psi

13” (325mm) to (1200mm)

5 psi

Over 40” (1200mm)

3 psi
Product form

STOCK CODE: 2.5PS
