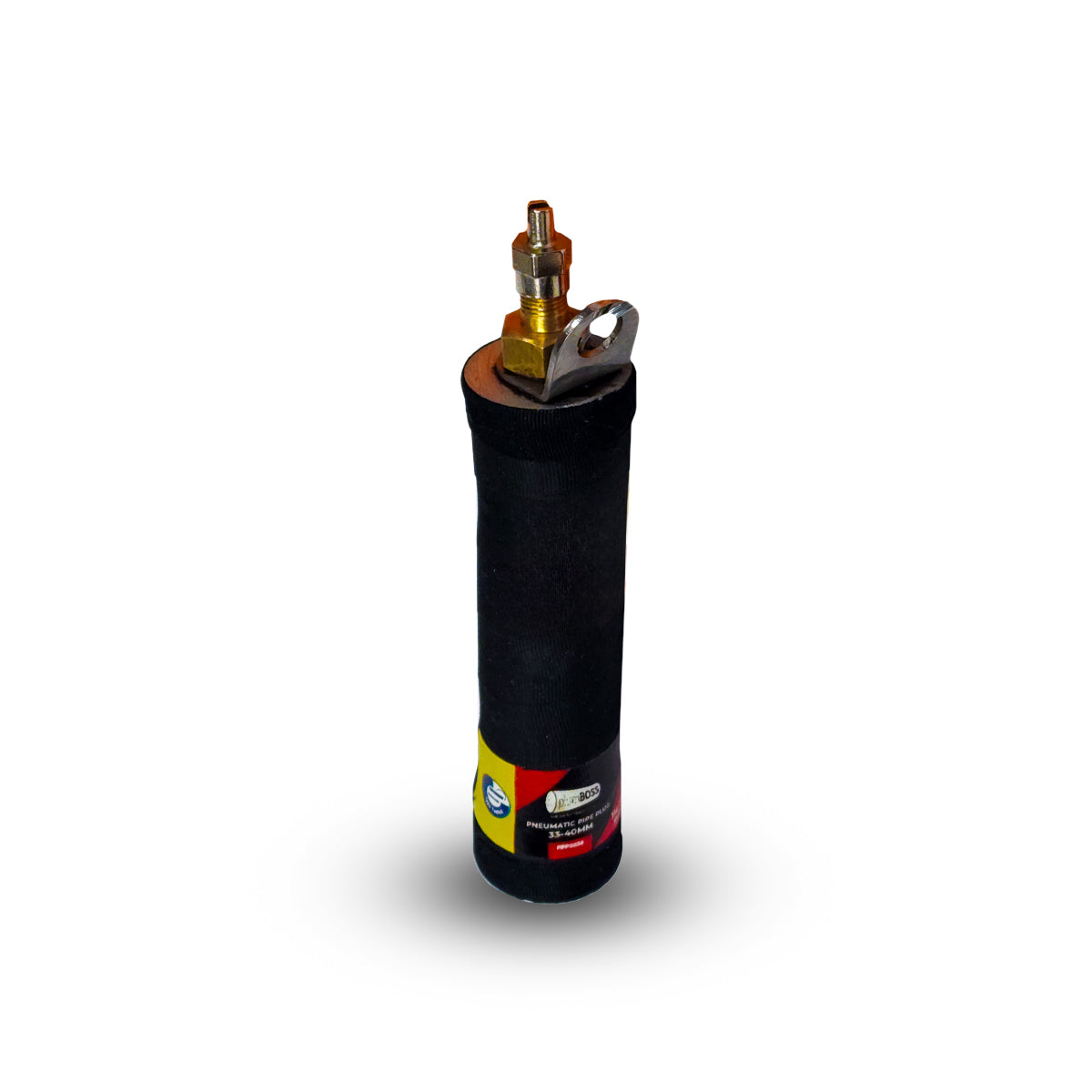

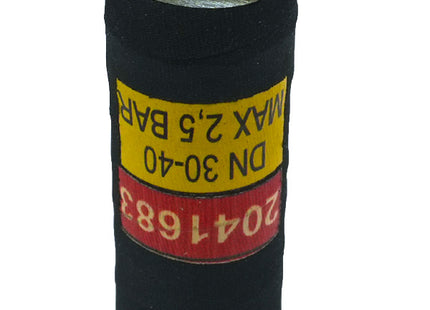

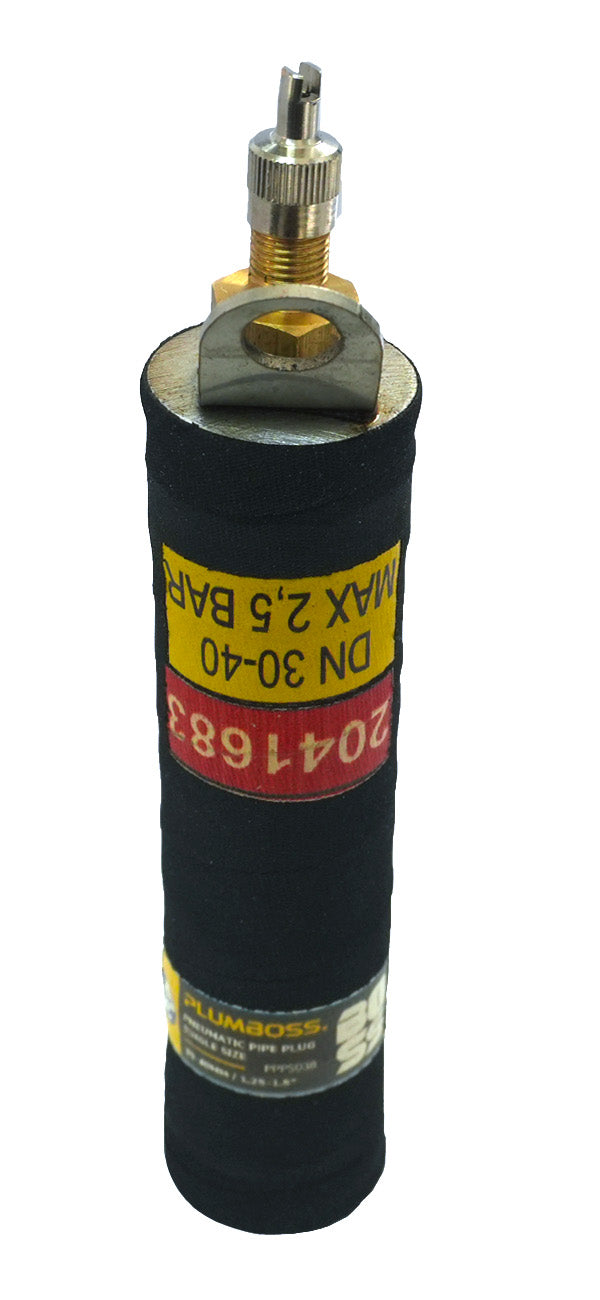

Pneumatic Pipe Plug 33-40mm | PPPS038

Description

SINGLE SIZE TEST BALL

The pneumatic test plug is the most versatile pipe plug available. Because of their flexible sealing design, the same plug can cover a wide range of pipe sizes and overcome common problems such as out of round pipe. These plugs are available with a flowthrough or bypass for testing or simply as a blocking plug.

NR SBR

All our pneumatic pipe plugs are manufactured from a high quality blend of natural rubber and styrene-butadiene rubber. NR-SBR has excellent mechanical properties making it particularly appreciated in environments subject to heavy wear due to friction, or where it is constantly exposed to impact or direct contact with abrasive elements. As a result, it is commonly used in the mining industry and in industrial environments subject to high abrasion where materials guaranteeing a long working life and optimum efficiency are required.

Benefits & Advantages

plumBOSS SIZE USAGE RANGE
MAXIMUM
INFLATION
PRESSURE
[bar] / [psi]
MAXIMUM
BACK
PRESSURE
[bar] / [psi]
DEFLATED PLUG
PRODUCT
WEIGHT
[kg]
PART NUMBER MIN. DIA.
[mm]
MAX. DIA.
[mm]
DIAMETER
[mm]
RUBBER
LENGTH
[mm]
OVERALL
LENGTH
[mm]
PPPS025 20 30 2.5 / 36 1 / 14.5 19 107 137 0.05
PPPS038 30 40 2.5 / 36 1 / 14.5 29 107 137 0.10
PPPS050 48 54 2.5 / 36 1 / 14.5 47 104 134 0.12
PPPS065 50 65 2.5 / 36 1 / 14.5 47 104 134 0.12
PPPS075 72 78 2.5 / 36 1 / 14.5 67 104 134 0.16
PPPS100 90 105 2.5 / 36 1 / 14.5 84 150 184 0.46
PPPS150 140 150 2.5 / 36 1 / 14.5 135 155 190 0.85

For more sizes call us on: 1300 331 141

Product form

STOCK CODE: PPPS038

or call us on:
P: 1300 331 141

Icon for shopping_bagFind a Retailer

1000+ Distributors Australia wide! Call us on 1300 331 141 to find your nearest retailer.

Downloads:


Download Pneumatic Pipe Plug 33-40mm | PPPS038 Parts Specs
