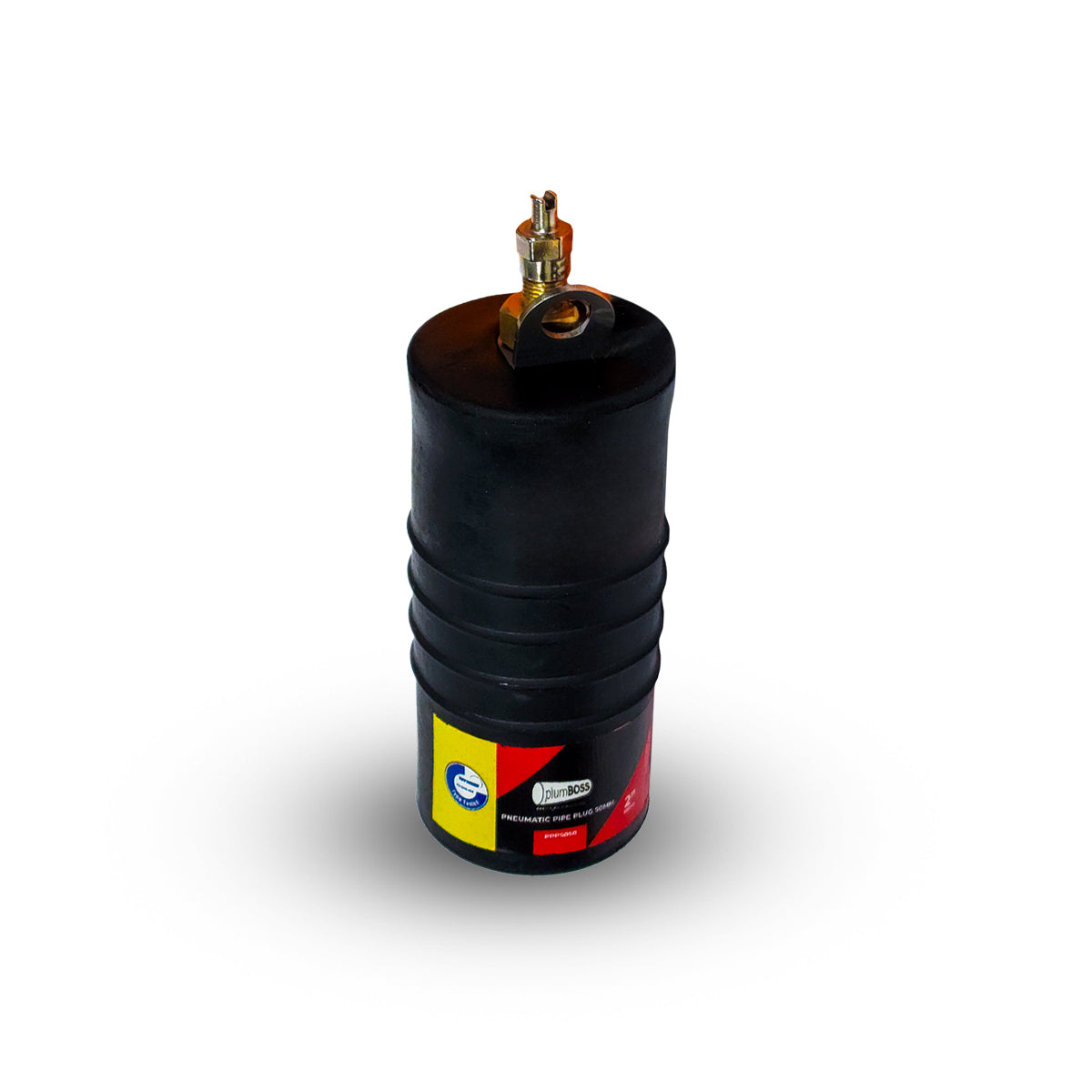

Pneumatic Pipe Plug 50mm | PPPS050

Pneumatic Pipe Plug 50mm | PPPS050 Description

SINGLE SIZE TEST BALL

The Test Ball Plug is very easy to use in a wide variety of applications because of their "flexible" sealing design, they easily overcome some common problems like out of round pipe and pipe with slightly differing interior dimensions. Test Ball Plugs are recommended for use in piping constructed of ABS, cast iron, clay, concrete, copper or PVC.

plumBOSS SIZE USAGE RANGE
MAXIMUM
INFLATION
PRESSURE
[bar] / [psi]
MAXIMUM
BACK
PRESSURE
[bar] / [psi]
DEFLATED PLUG
PRODUCT
WEIGHT
[kg]
PART NUMBER MIN. DIA.
[mm]
MAX. DIA.
[mm]
DIAMETER
[mm]
RUBBER
LENGTH
[mm]
OVERALL
LENGTH
[mm]
PPPS025 20 30 2.5 / 36 1 / 14.5 19 107 137 0.05
PPPS038 30 40 2.5 / 36 1 / 14.5 29 107 137 0.10
PPPS050 48 54 2.5 / 36 1 / 14.5 47 104 134 0.12
PPPS065 50 65 2.5 / 36 1 / 14.5 47 104 134 0.12
PPPS075 72 78 2.5 / 36 1 / 14.5 67 104 134 0.16
PPPS100 90 105 2.5 / 36 1 / 14.5 84 150 184 0.46
PPPS150 140 150 2.5 / 36 1 / 14.5 135 155 190 0.85

For more sizes call us on: 1300 331 141

Product form

Code: PPPS050

or call us on:
P:
1300 331 141

Categories: plumBOSS, Pneumatic Test Plugs, Single Size Test Plugs, Test Plugs,
Icon for shopping_bagFind a Retailer

1000+ Distributors Australia wide! Call us on 1300 331 141 to find your nearest retailer.
